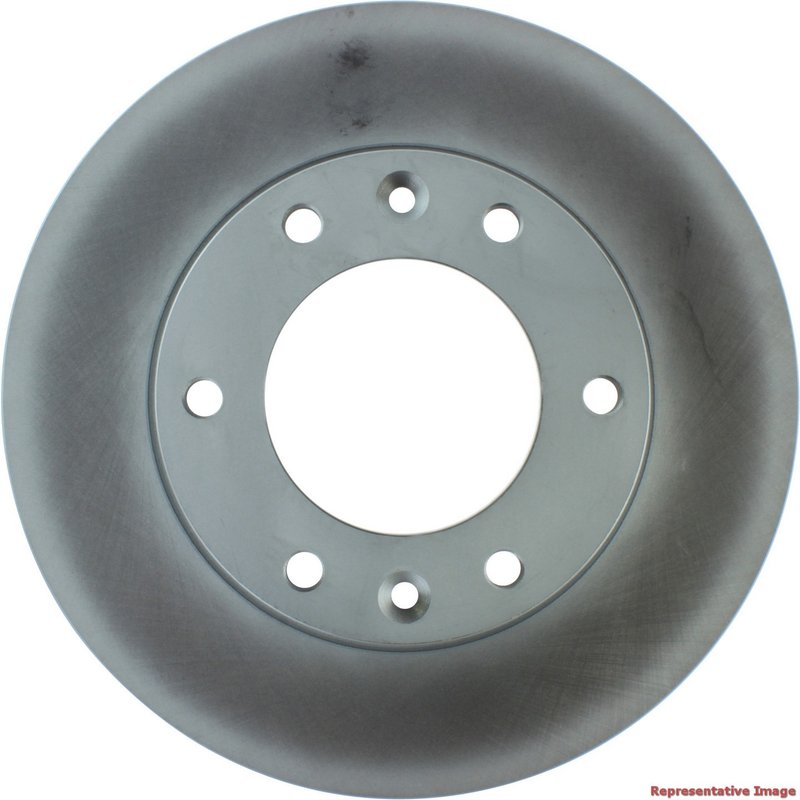

Centric 320.50017F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Sedona and Entourage

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.50017F, is a front vented rotor built for select Kia Sedona and Hyundai Entourage applications. Its fully coated disc finish and coated hat help protect exposed metal surfaces, while the smooth braking surface supports consistent pad contact.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.50017F
• Front position rotor for select Kia Sedona and Hyundai Entourage models
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for even brake pad engagement
• 6-lug pattern with 5.500 in. bolt circle diameter
• Floating disc mounting design

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are part of Centric’s full-coating rotor line, focused on corrosion protection across the disc and hat surfaces. This rotor measures 11.740 in. outside diameter, 1.102 in. nominal thickness, and 1.024 in. discard thickness, with an overall height of 2.142 in. The 298.200 mm diameter, 96.400 mm center hole, and 12.500 mm lug holes match the specified front brake applications for the Kia Sedona and Hyundai Entourage. The 320.50017F rotor is a direct-fit front brake rotor for 2006-2012 Kia Sedona, 2014 Kia Sedona, and 2007-2010 Hyundai Entourage applications listed below.

Vehicle Fitment

• Fits 2014 Kia Sedona, front
• Fits 2006-2012 Kia Sedona, front
• Fits 2007-2010 Hyundai Entourage, front

What This Rotor Helps Address

• Front brake pulsation caused by worn or uneven rotor surfaces
• Brake noise related to rotor wear or surface irregularity
• Corrosion on exposed rotor and hat surfaces
• Reduced braking consistency from rotor thickness loss
• Service replacement needs for front brake maintenance on Sedona and Entourage models

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub center measurements before installation. Inspect pads, calipers, and hub surfaces for wear or corrosion, and clean the mounting face thoroughly to support proper rotor seating. For best results, replace rotors in axle pairs and follow the vehicle manufacturer’s brake bedding procedure after installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric GCX rotors are engineered with full-surface coating for added elemental protection and are built to match the listed OE-style fitment and dimensional requirements for the specified vehicles.
