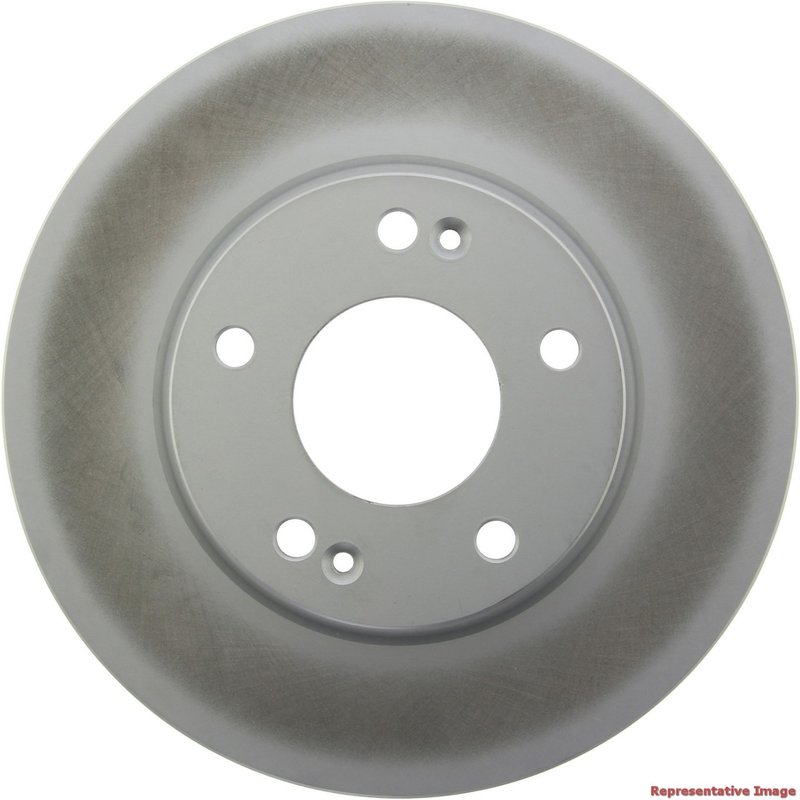

Centric 320.51009F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Hyundai Santa Fe

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51009F, is a front vented rotor built for 2001-2006 Hyundai Santa Fe applications. It combines a fully coated disc finish with a coated hat to help resist corrosion on exposed brake surfaces while maintaining a smooth braking surface.

For shoppers searching for a front brake rotor for 2001-2006 Hyundai Santa Fe or a 275mm front disc brake rotor for Hyundai Santa Fe, this Centric GCX rotor provides the correct fitment details and OE-style dimensions for the listed applications.

Key Features

• Part number 320.51009F
• Fits 2001-2002 Hyundai Santa Fe, front
• Fits 2003-2005 Hyundai Santa Fe, front with 275mm front disc
• Fits 2006 Hyundai Santa Fe, front
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• Smooth surface type for consistent pad contact
• 5-lug pattern with 114.3 mm bolt circle
• Floating disc mounting design
• No ABS tone ring included

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion protection for brake components that are exposed to moisture, road salt, and everyday driving conditions. On this rotor, the fully coated disc finish and coated hat finish help protect non-friction surfaces, while the smooth braking face and vented construction support stable front brake operation. The rotor measures 10.866 inches in outside diameter, 1.024 inches nominal thickness, and 0.961 inches discard thickness, with a 2.717-inch center hole diameter and 1.823-inch overall height. The straight vane layout and floating mounting design match the listed Hyundai Santa Fe front brake applications.

Part number 320.51009F is a direct-fit front rotor for 2001-2006 Hyundai Santa Fe models listed in the fitment data. If you are replacing worn front brake rotors on a Hyundai Santa Fe, this rotor gives you the dimensional and finish details needed for a proper service match.

What This Rotor Helps Address

• Front brake pulsation caused by rotor wear or thickness variation
• Corrosion on exposed rotor surfaces and hat areas
• Reduced braking consistency from worn smooth surfaces
• Noise or vibration associated with damaged front rotors
• Service replacement for a 2001-2006 Hyundai Santa Fe front brake repair

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and front position before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. For best results, follow the vehicle manufacturer’s brake bedding procedure after installation. This part cross-references no listed alternate part numbers in the provided data.

Quality Assurance

Centric GCX Elemental Protection rotors are built with coated surfaces and application-specific dimensions for the listed Hyundai Santa Fe fitments. Part number 320.51009F is specified for front use on the vehicles shown in the fitment data.
