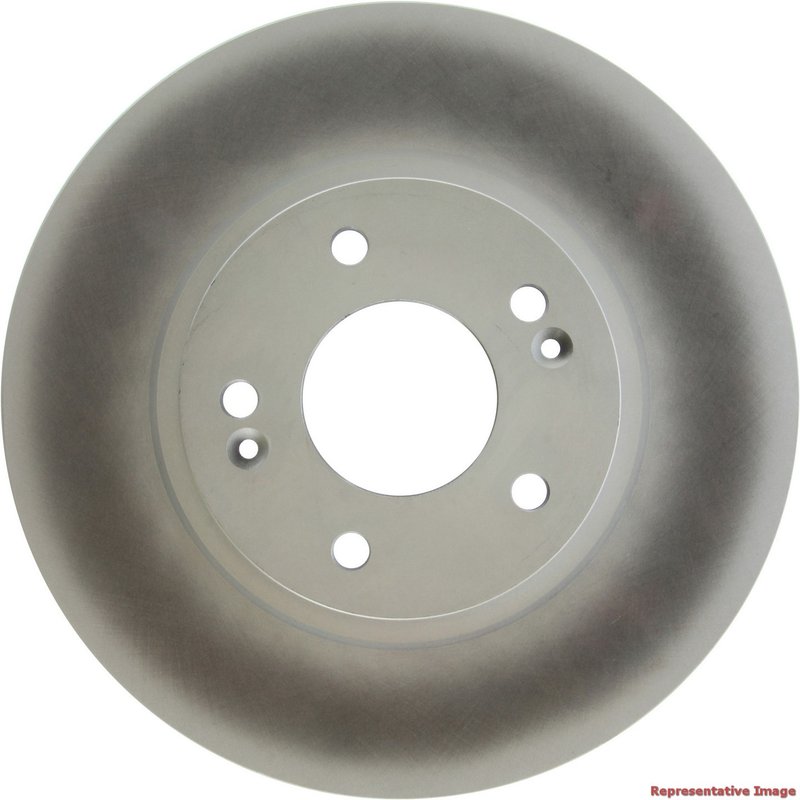

Centric 320.51013F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Hyundai Santa Fe

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51013F, is a front vented rotor built for select Hyundai Santa Fe applications. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.

Compatible with 2001-2006 Hyundai Santa Fe front brake applications, this rotor measures 293.8 mm outside diameter, 26.0 mm nominal thickness, and 24.4 mm discard thickness. The vented, straight-vane design supports heat management, while the floating disc mounting and 5-lug pattern align with the listed vehicle fitment.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Part number 320.51013F
• Fully coated disc finish with coated hat finish
• Vented rotor with straight vane construction
• Smooth surface type for front brake service
• 293.8 mm outside diameter and 26.0 mm nominal thickness
• 5 lug holes with 114.3 mm bolt circle diameter
• Floating disc mounting design

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion protection across the rotor surfaces that are most exposed to road moisture and debris. On this Centric rotor, the coated disc and hat finishes help preserve appearance and surface integrity, while the vented construction and straight vane layout support consistent front brake operation. The 320.51013F rotor is specified for Hyundai Santa Fe front axle use across the listed model years, including 2003-2005 Hyundai Santa Fe front with 293 mm front disc applications and 2001-2002, plus 2006 Hyundai Santa Fe front fitments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Rotor Can Address

• Front brake rotor corrosion on exposed surfaces
• Brake pulsation caused by worn or out-of-spec rotors
• Reduced braking consistency from heat buildup in vented front rotors
• Noise or vibration related to rotor wear
• Service replacement needs for a Hyundai Santa Fe front brake rotor

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. After installation, follow the vehicle manufacturer’s brake bedding procedure and confirm proper pad condition, caliper operation, and wheel torque.

Quality Assurance

Centric GCX rotors are built with coated surfaces and application-specific dimensions for listed Hyundai Santa Fe front brake fitments. Part number 320.51013F is engineered to match the stated rotor size, mounting pattern, and vented configuration for the confirmed applications.
