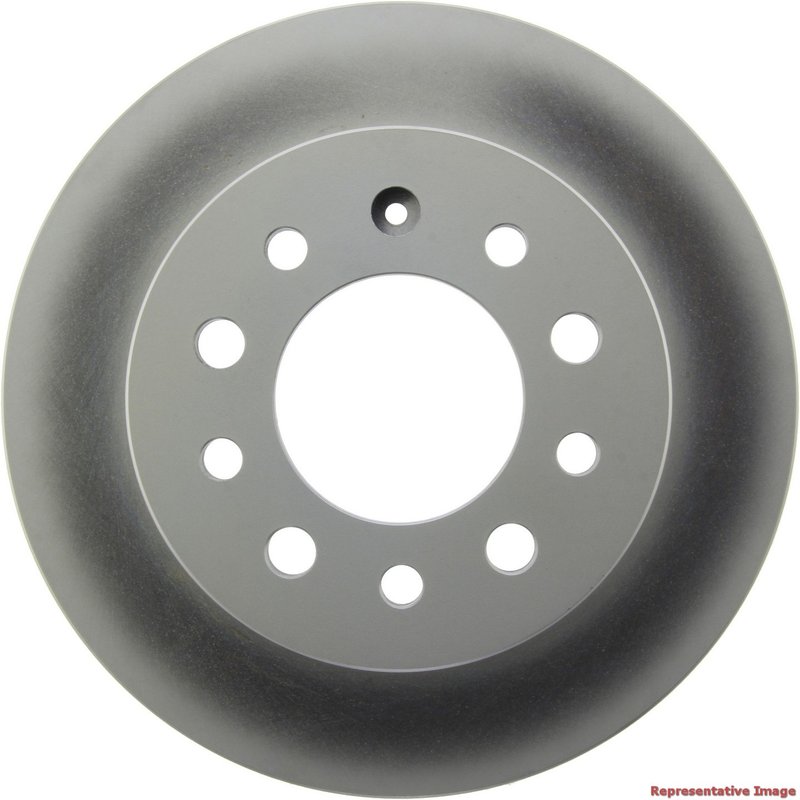

Centric 320.51016F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotor

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.51016F) is engineered for Hyundai Tiburon models requiring reliable braking performance. This solid, fully coated rotor offers corrosion resistance and consistent stopping power for daily driving conditions.

• Compatible with Hyundai Tiburon vehicles
• Part number: 320.51016F
• Solid disc brake rotor with smooth surface finish
• Fully coated disc and hat for enhanced corrosion protection
• Nominal thickness of 0.394 inches (10.000 mm) with discard thickness at 0.315 inches (8.000 mm)
• Outside diameter of 10.157 inches (258.000 mm)
• Floating disc mounting design
• Five lug holes with 0.492 inch (12.500 mm) diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating on both the disc and hat surfaces. This coating helps reduce rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The smooth surface finish supports even pad wear and quiet operation, making it suitable for Hyundai Tiburon owners seeking a durable replacement rotor.

Technical Specifications and Features

This rotor features a solid disc design with a smooth surface type, ensuring stable braking response. The overall height measures 1.783 inches (45.300 mm), and the center hole diameter is 2.992 inches (76.000 mm), designed to fit precisely on the hub. The mounting bolt hole circle diameter is 4.500 inches (114.300 mm), accommodating five lug holes. Weighing approximately 9 lbs (4.090 kgs), this rotor balances durability and manageable weight for the Hyundai Tiburon.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Hyundai Tiburon models
• Addresses rotor corrosion and rust issues due to full coating
• Improves braking consistency by maintaining nominal thickness
• Eliminates brake noise caused by uneven rotor surfaces
• Suitable for daily driving and moderate braking demands

Installation Notes and Tips

Ensure the rotor is installed on a clean, rust-free hub surface to maintain proper fitment. Verify the rotor thickness before installation; replace if below the discard thickness of 0.315 inches (8.000 mm). Use proper torque specifications for the five lug nuts to avoid rotor warping. This rotor does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle's braking system.

Quality Assurance and Warranty

Centric rotors undergo rigorous quality control to meet OEM standards for fit, form, and function. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
