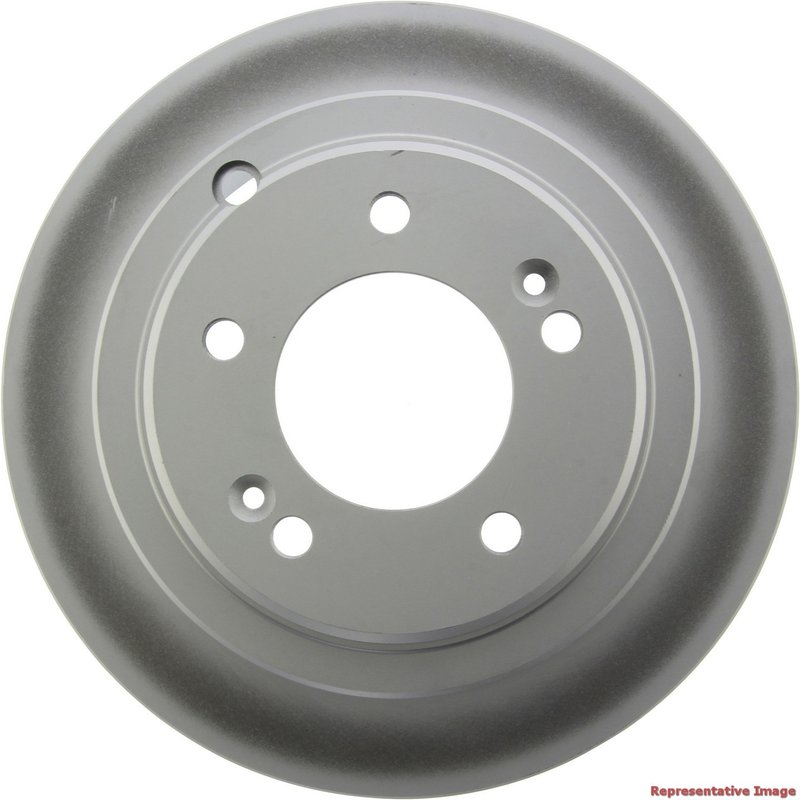

Centric 320.51019F Disc Brake Rotor - Rear
Rear Brake Rotor for Kia Amanti
Centric GCX Elemental Protection Disc Brake Rotor 320.51019F is a rear solid rotor built for 2004-2006 Kia Amanti applications. It features a fully coated disc finish, coated hat, and smooth surface to support consistent braking performance while helping resist corrosion on exposed metal surfaces.
Key Features
- Fits 2004-2006 Kia Amanti, rear
- Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
- Part number 320.51019F
- Fully coated disc finish with coated hat finish
- Solid rotor design with smooth surface type
- 5-lug pattern with 114.3 mm bolt circle
- Outside diameter: 283.0 mm (11.142 in)
- Nominal thickness: 10.0 mm (0.394 in)
- Discard thickness: 8.4 mm (0.331 in)
- Center hole diameter: 75.7 mm (2.980 in)
Product Details
The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion protection across the rotor surfaces, including the disc and hat areas. For Kia Amanti rear brake service, this rotor provides the correct solid construction, smooth friction surface, and OE-style dimensions needed for a direct replacement. The 320.51019F part number is the reference to use when matching rear brake rotor specifications for 2004, 2005, and 2006 Kia Amanti models.
Common Issues This Rotor Can Address
- Rear rotor rust on the hat or non-friction surfaces
- Brake pulsation caused by worn rotor thickness
- Uneven braking feel from a damaged or scored rotor surface
- Noise from a rotor that no longer meets service thickness
- Corrosion buildup on exposed brake components
Installation Notes
Verify rear fitment by matching the vehicle year, make, model, and rotor dimensions before installation. Inspect pads, caliper hardware, and hub condition during brake service, and clean the mounting surface so the rotor seats properly. Confirm the 5-lug, 114.3 mm bolt circle and 75.7 mm center hole dimensions align with the vehicle before final assembly.
Quality Assurance
Centric GCX Elemental Protection rotors are built with coated surfaces to help protect against corrosion during normal service. Part number 320.51019F is specified for 2004-2006 Kia Amanti rear brake applications.
| Brand | Centric |
|---|---|
| Part Number | 320.51019F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear |
| Discard Thickness | 0.331 |
| Discard Thickness | 8.400 |
| Nominal Thickness | 0.394 |
| Nominal Thickness | 10.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 2.756 |
| Overall Height | 70.000 |
| Outside Diameter | 11.142 |
| Outside Diameter | 283.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 190.000 |
| Nominal Drum Diameter | 7.480 |
| Bearings Included | No |
| Center Hole Diameter | 2.980 |
| Center Hole Diameter | 75.700 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.488 |
| Stud/Lug Hole Diameter | 12.400 |
| Disc Mounting [cntrc] | Floating / dih |
| Max PB Drum Dia [cntrc] in | 7.520 |
| Max PB Drum Dia [cntrc] mm | 191.000 |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] kgs | 5.000 |
| Weight [cntrc] lbs | 11.000 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Kia | Amanti | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2005 | Kia | Amanti | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2004 | Kia | Amanti | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
