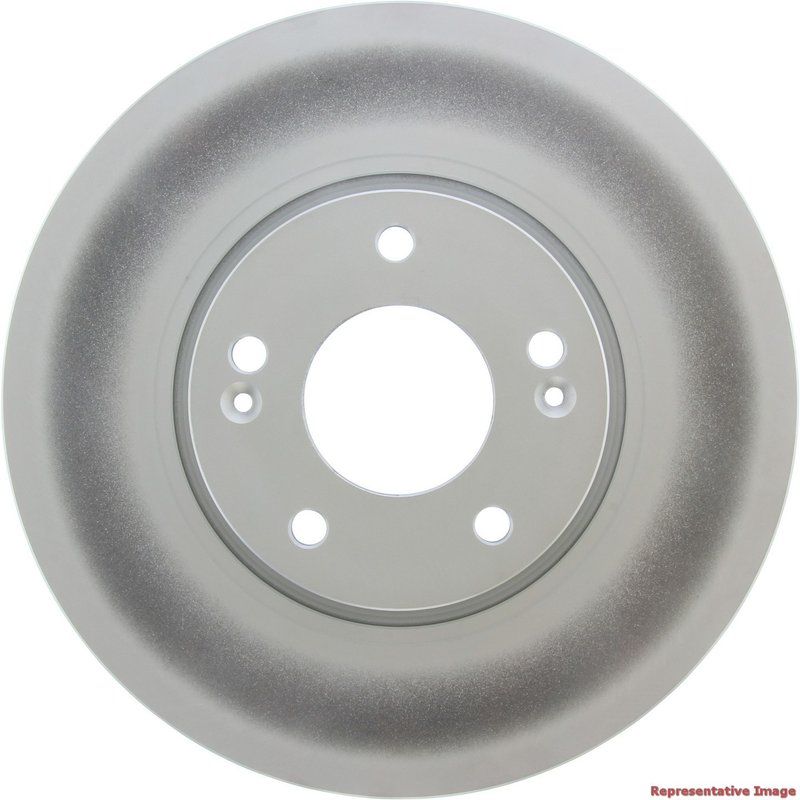

Centric 320.51020F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Hyundai and Kia

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51020F, is a front vented rotor built for select Hyundai and Kia applications that use a 300 mm front disc. It features a fully coated disc finish and coated hat finish to help resist corrosion while maintaining a smooth braking surface.

Key Features

• Part number 320.51020F Centric GCX Elemental Protection Disc Brake Rotor
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• 300.000 mm outside diameter and 28.000 mm nominal thickness
• 69.000 mm center hole diameter and 114.300 mm bolt circle diameter
• 5-lug mounting pattern with 12.500 mm lug holes
• Smooth surface type for consistent pad contact
• Floating disc mounting design

Product Details

Centric’s GCX Elemental Protection Disc Brake Rotors - Full Coating line is built around corrosion-resistant surface treatment for drivers who want a cleaner-looking rotor and added protection on exposed metal surfaces. This rotor measures 300 mm in outside diameter, 47.700 mm overall height, and 28.000 mm nominal thickness, with a 26.400 mm discard thickness specification. The vented construction and straight vane layout support front brake use on vehicles such as the Hyundai Sonata, Hyundai Tucson, Kia Optima, Kia Forte, Kia Forte5, Kia Forte Koup, Kia Sportage, Kia Rondo, Hyundai Veloster, and Hyundai ix35 where the listed fitment matches.

This part number 320.51020F is a direct-fit front disc brake rotor for select 2005-2018 Hyundai and Kia models, including applications that specify compatibility with 300 mm front rotors. It is a practical replacement choice when the original rotor is worn, scored, or affected by surface corrosion.

What This Rotor Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Scoring and uneven pad contact on the braking surface
• Corrosion on exposed rotor and hat surfaces
• Reduced braking consistency from an aged front rotor
• Noise related to worn or uneven rotor surfaces

Installation Notes and Fitment

Compatible With front applications only. Fits 2016-2018 Kia Forte, front; 2010-2014 Kia Forte, front; 2012-2018 Kia Forte5, front; 2013-2017 Hyundai Veloster, front; 2010-2017 Kia Forte Koup, front; 2016 Kia Optima, front; 2011-2013 Kia Optima, front; 2014-2016 Kia Rondo, front; 2011-2016 Kia Sportage, front; 2015 Hyundai ix35, front; 2015 Hyundai Sonata, front; 2009 Hyundai Sonata, front; 2013-2015 Hyundai Tucson, front; 2010 Hyundai Tucson, front; 2014-2015 Kia Optima, front; 2011-2014 Hyundai Sonata, front; 2006-2008 Hyundai Sonata, front; 2012 Hyundai Tucson, front; 2011 Hyundai Tucson, front; 2010 Hyundai Sonata, front; 2005 Hyundai Sonata, front.

Verify rotor diameter, caliper clearance, and hub dimensions before installation. The notes indicate some Hyundai Sonata and Kia Optima applications require a front disc caliper piston compatible with 300 mm rotors. For best results, inspect pads and related brake components during rotor replacement.

Quality Assurance

Centric manufactures the GCX Elemental Protection Disc Brake Rotors line with coated surfaces and application-specific dimensions for consistent fitment on supported Hyundai and Kia front brake systems. Part number 320.51020F is built to match the listed rotor specifications and vehicle applications.
