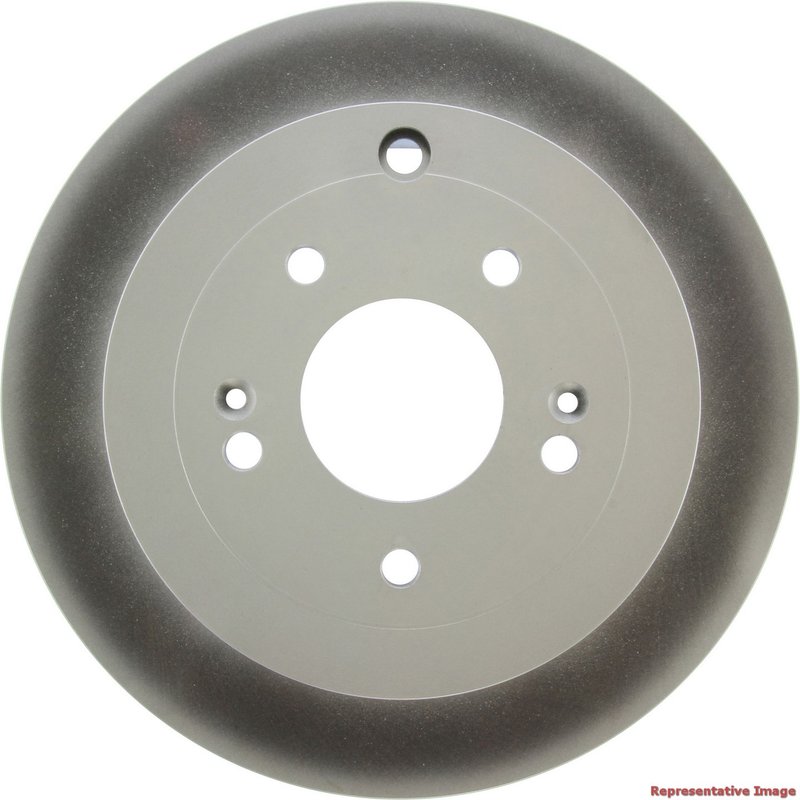

Centric 320.51025F Disc Brake Rotor - Rear

Rear Brake Rotor for Hyundai Santa Fe

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for rear brake service on the 2007-2009 Hyundai Santa Fe. Part number 320.51025F combines a fully coated disc finish with a coated hat finish to help maintain a cleaner rotor surface in everyday driving conditions.

For shoppers searching for a rear brake rotor for 2007-2009 Hyundai Santa Fe, Centric 320.51025F provides the correct fitment details and a smooth, solid rotor design. The GCX Elemental Protection line focuses on corrosion-resistant surface treatment across the rotor, including the hat area, for a more complete protective finish.

Key Features

• Fits 2007-2009 Hyundai Santa Fe, rear
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.51025F
• Fully coated disc finish with coated hat finish
• Smooth surface type for rear disc brake service
• Solid rotor construction
• 5-lug pattern with 114.3 mm bolt circle
• Outside diameter: 302.0 mm (11.890 in)
• Nominal thickness: 11.100 mm (0.437 in)
• Discard thickness: 9.400 mm (0.370 in)

Product Details

This Centric rear disc brake rotor is specified for the 2007, 2008, and 2009 Hyundai Santa Fe in the rear position. The rotor measures 302.0 mm in outside diameter, 72.0 mm in overall height, and 68.9 mm at the center hole diameter. It uses a floating / DIH disc mounting configuration, has five lug holes, and includes three miscellaneous holes as listed in the product data. The fully coated finish and coated hat help protect exposed metal surfaces, while the smooth braking surface supports consistent rear brake contact.

This part number 320.51025F is a direct-fit rear rotor application for Hyundai Santa Fe models listed above. It cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Reasons to Replace

• Rear brake pulsation from rotor wear or thickness variation
• Corrosion on the rotor hat or outer surfaces
• Reduced braking smoothness from a worn or scored disc surface
• Rotor thickness reaching discard specifications
• Noise or vibration during rear brake operation

Installation Notes

Verify rear fitment by year, make, model, and position before installation. Inspect pads, caliper hardware, and hub surfaces during service so the new rotor seats evenly. Clean the rotor friction surface before use and confirm the wheel bolt pattern and center bore match the vehicle specification. Part number 320.51025F is intended for rear brake replacement on the 2007-2009 Hyundai Santa Fe.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces for added corrosion resistance in brake service applications. The product data lists the rotor dimensions, finish, and fitment details needed for accurate selection on the Hyundai Santa Fe rear axle.
