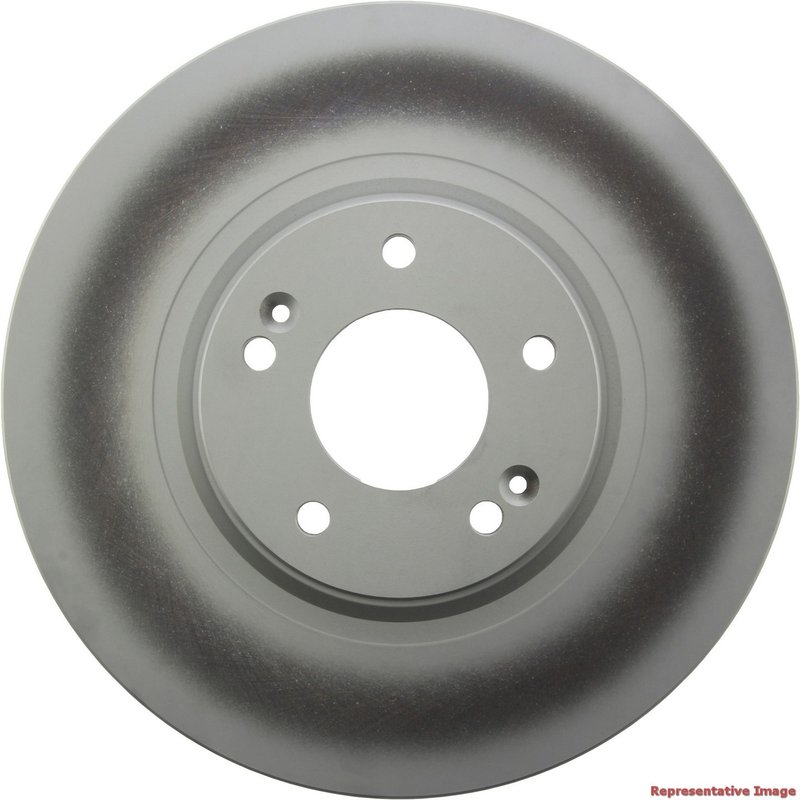

Centric 320.51026F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.51026F) is engineered for reliable braking performance on Hyundai Veracruz models. Featuring a full coating for enhanced corrosion resistance, this vented rotor is designed to maintain smooth braking under various driving conditions.

• Full coating on disc and hat for corrosion protection
• Vented rotor design with straight vane style for heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) with discard thickness at 1.039 inches (26.400 mm)
• Outside diameter of 12.638 inches (321.000 mm) for precise fitment
• Floating disc mounting with 5 lug holes and 4.5 inch bolt circle diameter
• Smooth surface finish for consistent pad contact
• Overall height of 1.941 inches (49.300 mm)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This coating helps prevent rust and corrosion, extending rotor life and maintaining braking efficiency. The vented design with straight vanes improves heat dissipation, which is critical for maintaining braking performance and reducing fade during extended use. This product line is suitable for drivers seeking durable, OEM-quality replacement rotors for their Hyundai Veracruz.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 1.102 inches (28.000 mm) and a discard thickness of 1.039 inches (26.400 mm), ensuring it meets safety and performance standards. The rotor’s outside diameter measures 12.638 inches (321.000 mm), matching the Hyundai Veracruz’s factory specifications. It includes a floating disc mounting system and a smooth surface finish to promote even pad wear and consistent braking feel. The rotor is vented with straight vanes to optimize airflow and heat dissipation, helping to prevent overheating during braking.

Compatible Vehicles and Applications

• Replacement disc brake rotor for Hyundai Veracruz models
• Designed to address rotor wear and corrosion issues
• Ideal for restoring braking performance and reducing noise
• Suitable for vehicles experiencing rotor warping or uneven pad contact
• Helps maintain safe stopping distances and pedal feel

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it is above the discard thickness of 1.039 inches (26.400 mm). Clean the hub surface thoroughly to prevent runout and ensure proper rotor seating. Use the correct torque specifications for the 5 lug nuts on the 4.5 inch bolt circle diameter. This rotor does not include ABS tone rings or bearings, so verify compatibility with your vehicle’s existing components. Proper bedding-in of brake pads after installation is recommended to optimize braking performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating on the rotor and hat surfaces provides enhanced corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
