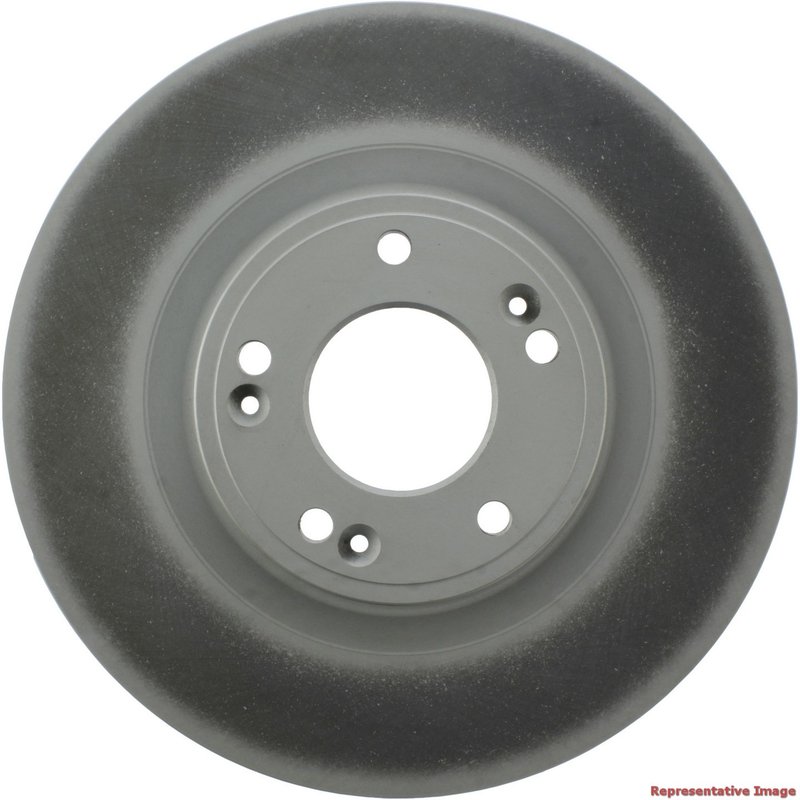

Centric 320.51034F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Genesis

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51034F, is a front vented rotor built for 2009-2011 Hyundai Genesis applications. It combines a fully coated disc finish with a coated hat to help resist corrosion while maintaining a smooth braking surface.

For drivers searching for a front brake rotor for 2009-2011 Hyundai Genesis, 320.51034F provides the correct fitment details and OE-style dimensions for the front axle. The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is focused on corrosion protection and consistent rotor geometry for everyday street use.

Key Features

• Fits 2009-2011 Hyundai Genesis, front
• Centric part number 320.51034F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Outside diameter: 320.000 mm (12.598 in)
• Nominal thickness: 28.000 mm (1.102 in)
• Discard thickness: 26.400 mm (1.039 in)
• 5-lug pattern with 114.300 mm bolt circle diameter
• Center hole diameter: 69.000 mm
• Smooth surface type

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are engineered with a fully coated disc and coated hat to help protect exposed metal surfaces from corrosion. This rotor measures 320.000 mm in outside diameter, 56.700 mm in overall height, and uses a vented, straight-vane construction for front brake service on the Hyundai Genesis. The floating disc mounting design, 5 stud/lug holes, and 114.300 mm bolt circle support the specified fitment for 2009-2011 Hyundai Genesis front brake replacement needs. Part number 320.51034F is a direct reference for shoppers comparing front rotor options for this vehicle.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Rotor Can Address

• Front brake pulsation caused by worn or uneven rotor surfaces
• Corrosion on exposed rotor and hat surfaces
• Brake noise related to rotor surface wear
• Reduced braking consistency from rotor thickness loss
• Fitment issues when replacing a front rotor on a 2009-2011 Hyundai Genesis

Installation Notes and Tips

Verify rotor dimensions, hub bore, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish even pad transfer on the new rotor.

Quality Assurance

Centric GCX rotors are built with application-specific dimensions and protective coatings intended to support corrosion resistance in brake service. Confirm the part number 320.51034F and the listed 2009-2011 Hyundai Genesis front fitment before ordering.
