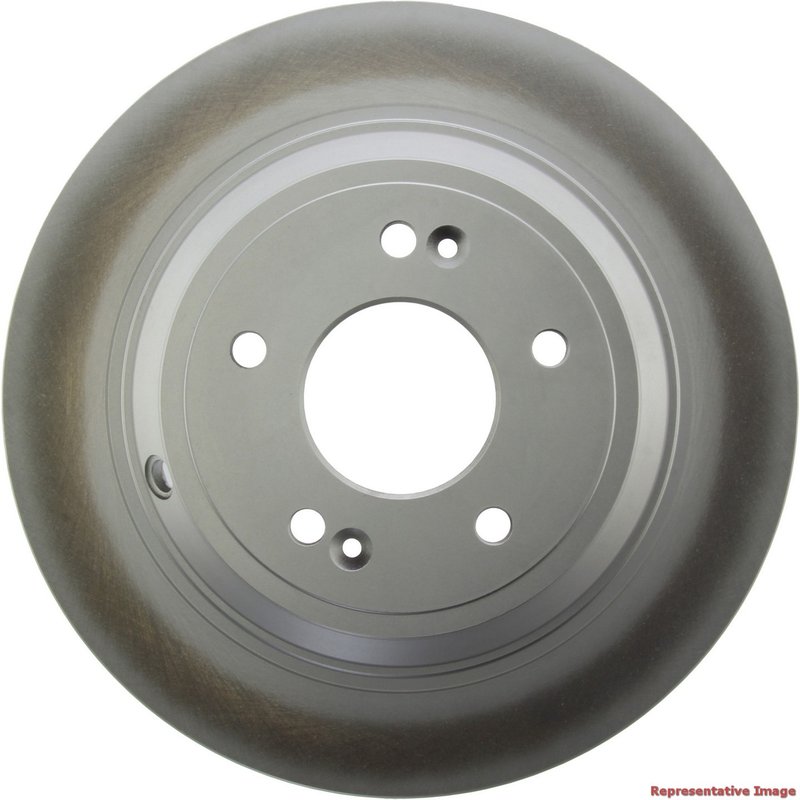

Centric 320.51045F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for select Genesis, Hyundai, and Kia vehicles. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Part Number: 320.51045F
• Fully coated disc and hat finish for corrosion protection
• Solid disc type with smooth surface finish
• Outside diameter: 12.362 inches (314 mm)
• Nominal thickness: 0.512 inches (13.000 mm)
• Discard thickness: 0.449 inches (11.400 mm)
• Overall height: 2.402 inches (61.000 mm)
• Mounting bolt hole circle diameter: 4.500 inches (114.300 mm)
• Five stud/lug holes with 0.492 inch (12.500 mm) diameter

Product Line Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor's service life and maintains a clean appearance, making it suitable for vehicles exposed to harsh weather conditions. The 320.51045F rotor is part of this line, combining solid rotor construction with a smooth braking surface for consistent performance.

Technical Specifications and Features

This rotor features a solid disc design with a smooth surface type, ensuring even pad contact and reliable braking response. The fully coated disc and hat finish protect against environmental damage, reducing the risk of rust buildup. With an outside diameter of 12.362 inches and a nominal thickness of 0.512 inches, it meets the precise specifications required for proper fitment and function. The rotor includes five stud holes arranged on a 4.5-inch bolt circle diameter, compatible with specific Genesis, Hyundai, and Kia models.

Compatible Vehicles and Applications

• Compatible with Genesis G80 and G90 models
• Fits Hyundai Genesis and K900 vehicles
• Designed for use in brake systems requiring solid disc rotors
• Ideal replacement for worn or damaged rotors on listed vehicles
• Helps address issues such as brake noise, vibration, and reduced stopping power

Installation Notes and Tips

Ensure the rotor thickness is within the nominal and discard limits before installation. The 320.51045F rotor requires proper alignment with the five lug holes and mounting bolt circle diameter of 4.5 inches. Use appropriate tools to avoid damaging the fully coated surface during installation. This rotor does not include bearings or an ABS tone ring, so verify compatibility with your vehicle's braking system.

Quality Assurance and Warranty

Centric provides quality assurance through precise manufacturing standards and corrosion-resistant coatings. While specific warranty details are not provided here, Centric rotors typically meet or exceed OEM specifications for durability and performance. Always consult the manufacturer or authorized dealer for warranty information related to the 320.51045F rotor.
