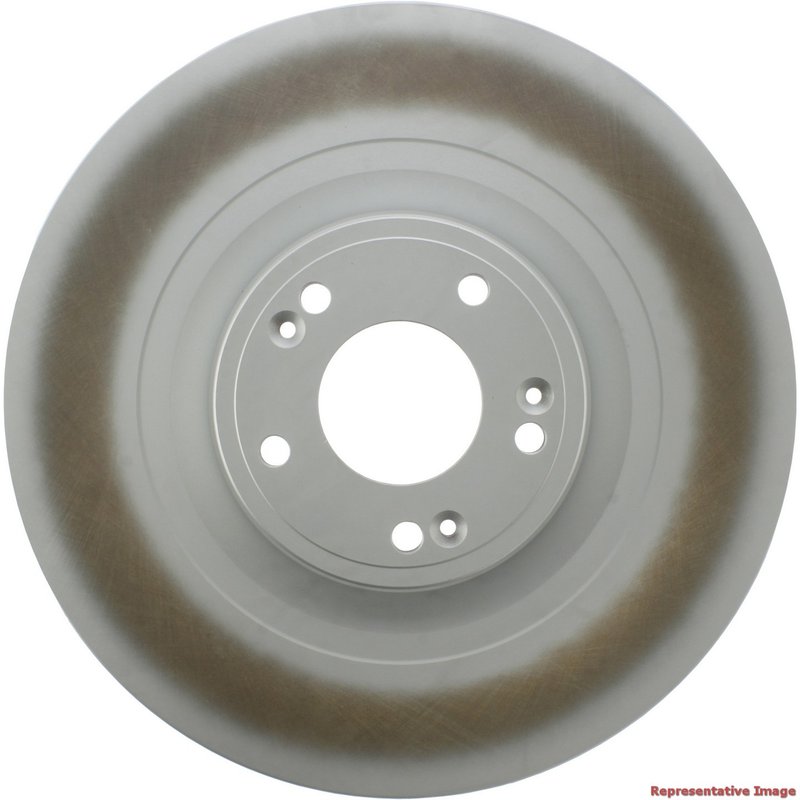

Centric 320.51046F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.51046F, is a front vented rotor built for select Genesis, Hyundai, and Kia applications. It features a fully coated disc finish, coated hat, and smooth surface to support consistent braking performance while helping resist corrosion on exposed metal surfaces.

Compatible With 2017 Genesis G80 front, 2015-2017 Kia K900 front, 2012-2016 Hyundai Equus front, and 2015-2016 Hyundai Genesis front. The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is focused on corrosion protection and OE-style fitment for vehicles that need a direct replacement front rotor.

Key Features

• Part number 320.51046F
• Front disc brake rotor application
• Vented rotor design with straight vanes
• Fully coated disc finish and coated hat finish
• Smooth surface type
• 5-lug pattern with 114.3 mm bolt circle
• Outside diameter: 360.0 mm (14.173 in.)
• Nominal thickness: 30.1 mm (1.185 in.)
• Discard thickness: 28.4 mm (1.118 in.)
• Floating disc mounting with 3 miscellaneous holes

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for front axle service on larger luxury sedans and performance-oriented passenger vehicles. This rotor uses a vented, straight-vane construction with a floating disc mounting layout, a 69.0 mm center hole diameter, and a 56.5 mm overall height. The coated disc and hat surfaces help protect the rotor from corrosion in areas exposed to moisture, road salt, and brake dust. Part number 320.51046F is a direct-fit front rotor for the listed Genesis, Hyundai, and Kia models.

Common Brake Issues This Rotor Addresses

• Brake pulsation from rotor thickness variation
• Rust buildup on exposed rotor surfaces
• Uneven braking feel from worn front rotors
• Noise caused by damaged or heat-affected rotor surfaces
• Reduced braking consistency from rotor wear near discard thickness

Installation Notes and Tips

Verify front axle fitment, bolt circle, center hole diameter, and rotor thickness before installation. Inspect pads, calipers, and hub surfaces for wear or corrosion before mounting the new rotor. Clean the hub face thoroughly so the rotor seats flat and torque wheel fasteners to the vehicle manufacturer’s specification after installation. For search reference, this rotor is commonly sought as a front brake rotor for 2012-2016 Hyundai Equus, 2015-2016 Hyundai Genesis, 2015-2017 Kia K900, and 2017 Genesis G80 applications.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces and application-specific dimensions to support consistent replacement fitment. Part number 320.51046F is specified for the listed front applications and follows the dimensional requirements shown above.
