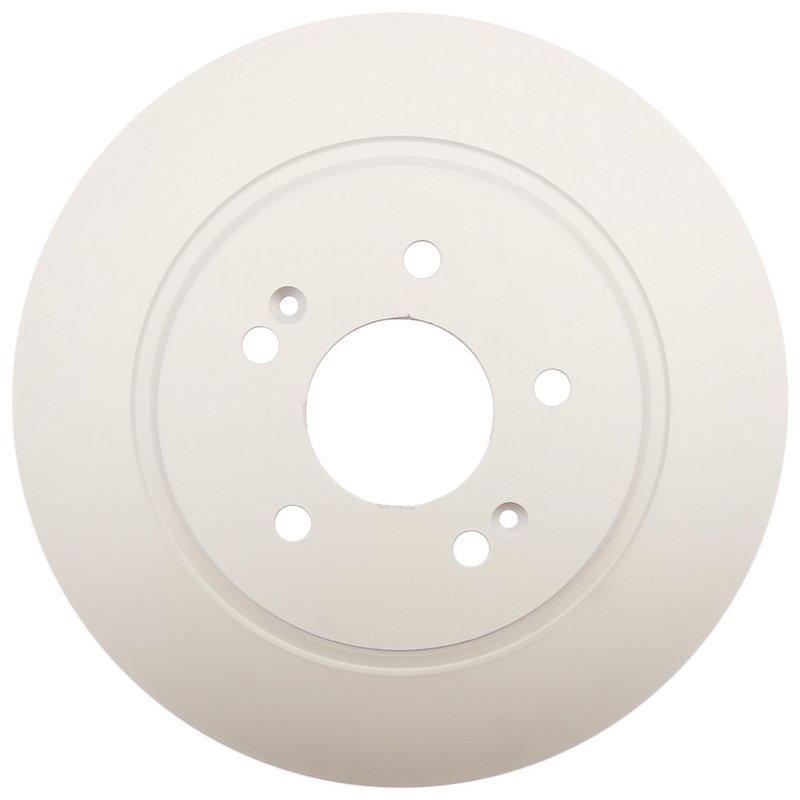

Centric 320.51070F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Hyundai Palisade and Kia Telluride models. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability.

• Part Number: 320.51070F
• Compatible with Hyundai Palisade and Kia Telluride
• Fully coated disc and hat for corrosion protection
• Solid disc type with smooth surface finish
• Nominal thickness of 0.433 inches (11.000 mm)
• Outside diameter of 12.012 inches (305.100 mm)
• Floating disc mounting design
• 5 lug holes with 0.488 inch (12.400 mm) diameter

Product Line Details: Centric GCX Elemental Protection

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor's service life and maintains consistent braking performance, especially in environments prone to moisture and road salt. The 320.51070F rotor benefits from this coating technology, ensuring durability for your Hyundai Palisade or Kia Telluride.

Technical Specifications and Features

This disc brake rotor features a solid design with a smooth surface type, optimized for consistent brake pad contact. The rotor has a nominal thickness of 0.433 inches (11.000 mm) and a discard thickness of 0.354 inches (9.000 mm), indicating when replacement is necessary. The overall height measures 1.260 inches (32.000 mm), and the outside diameter is 12.012 inches (305.100 mm). The rotor includes a floating disc mounting system and a coated hat finish to further protect against corrosion. It has a center hole diameter of 2.717 inches (69.000 mm) and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm) with 5 lug holes sized at 0.488 inches (12.400 mm).

Applications and Problem Solving

• Replacement rotor for worn or warped rotors on Hyundai Palisade and Kia Telluride
• Addresses rotor corrosion and rust issues with full coating protection
• Improves braking consistency by maintaining smooth rotor surface
• Prevents premature rotor wear in harsh weather conditions
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.354 inches (9.000 mm) before installation. Clean the hub surface thoroughly to prevent uneven rotor mounting. Use proper torque specifications for the 5 lug bolts to avoid rotor warping. This rotor does not include ABS tone rings or bearings, so verify compatibility with your vehicle’s existing components. The floating disc mounting design requires careful alignment during installation.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating on the disc and hat provides extended corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric’s official warranty policy for complete information.
