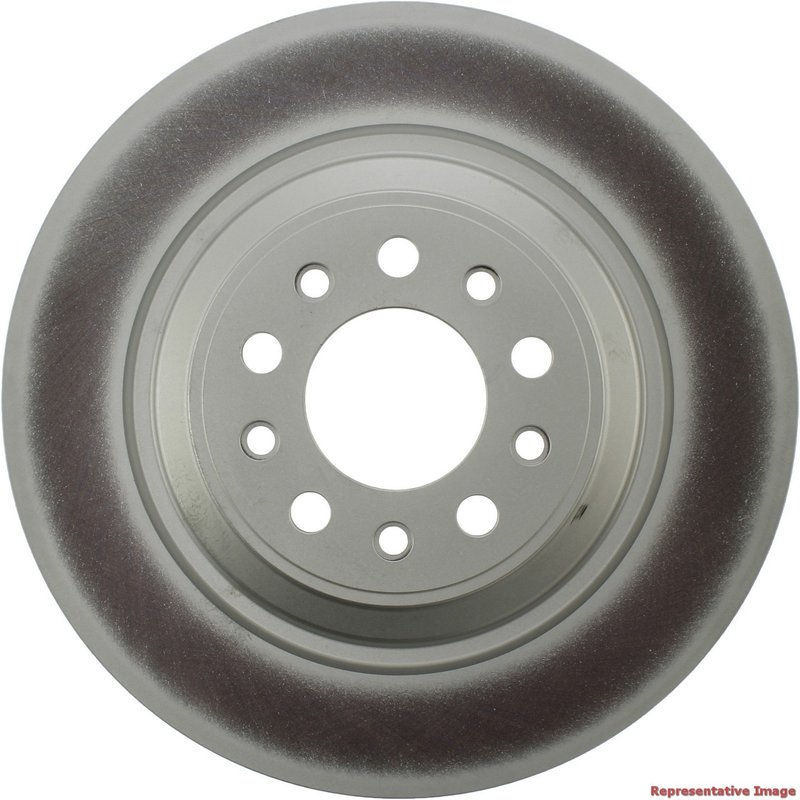

Centric 320.58011F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.58011F is engineered for reliable braking performance on Jeep Cherokee models. Featuring a full coating, this rotor offers enhanced corrosion resistance and durability for consistent stopping power.

• Full coating on disc and hat for corrosion protection
• Solid disc design with smooth surface finish
• Nominal thickness of 0.472 inches (12.000 mm)
• Discard thickness at 0.409 inches (10.400 mm)
• Outside diameter of 12.598 inches (320.000 mm)
• Five lug holes with 0.618 inch (15.700 mm) diameter
• Floating disc mounting for improved thermal expansion
• Compatible with Jeep Cherokee brake systems

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide enhanced protection against rust and corrosion through a complete coating process on both the disc and hat surfaces. This full coating extends rotor life and maintains braking efficiency, especially in environments prone to moisture and road salt exposure. The 320.58011F rotor is part of this line, offering solid rotor construction and a smooth braking surface tailored for Jeep Cherokee vehicles.

Technical Specifications and Features

This disc brake rotor features a solid design with a smooth surface type, ensuring consistent pad contact and braking performance. The rotor has a nominal thickness of 0.472 inches (12.000 mm) and a discard thickness of 0.409 inches (10.400 mm), indicating when replacement is necessary. The overall height measures 1.311 inches (33.300 mm), and the outside diameter is 12.598 inches (320.000 mm). It includes five stud/lug holes with a diameter of 0.618 inches (15.700 mm) arranged on a 4.331 inch (110.000 mm) bolt circle diameter. The rotor mounts using a floating disc mounting system, which helps accommodate thermal expansion during braking. Note that this rotor does not include an ABS tone ring or bearings.

Applications and Problem Solving

• Replacement for worn or warped rotors on Jeep Cherokee models
• Addresses rotor corrosion and rust issues with full coating protection
• Improves braking consistency by maintaining smooth rotor surface
• Prevents premature rotor failure due to environmental exposure
• Compatible with factory brake components requiring solid rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Use proper torque specifications for lug nuts to avoid rotor warping
• Check compatibility with existing brake pads and calipers on Jeep Cherokee
• Verify absence of ABS tone ring requirement for your vehicle model

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details for part number 320.58011F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
