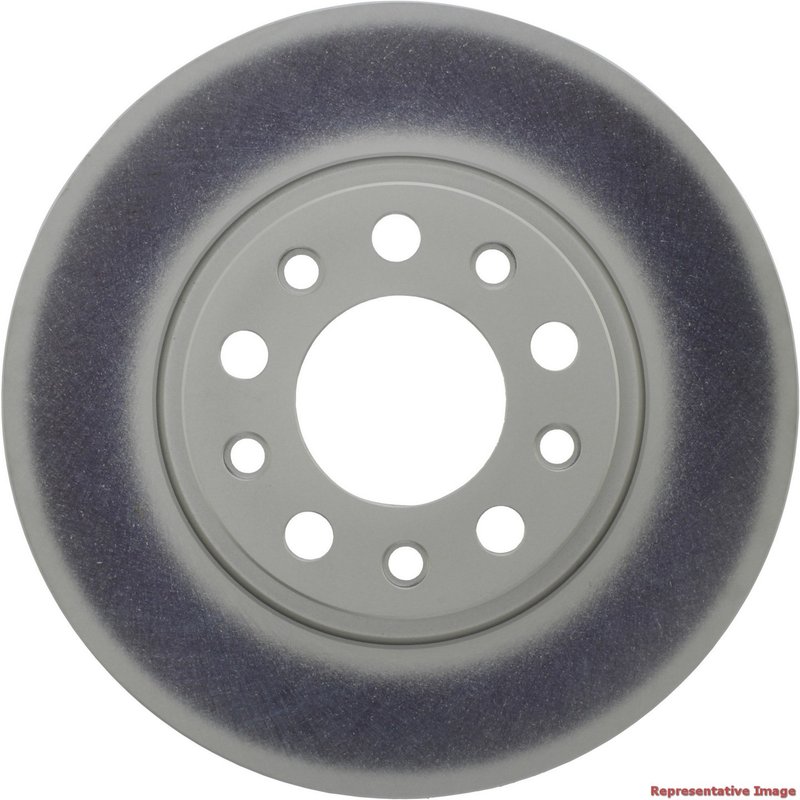

Centric 320.58013F Disc Brake Rotor - Rear

Rear Brake Rotor for Jeep Cherokee and Chrysler 200

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.58013F, is a rear solid rotor built for specific Jeep Cherokee and Chrysler 200 applications. It features a fully coated disc finish and coated hat to help protect exposed surfaces while maintaining a smooth braking surface.

Key Features

• Part number 320.58013F rear disc brake rotor
• Fully coated disc finish with coated hat finish
• Solid rotor design with smooth surface type
• Outside diameter: 278 mm (10.945 in.)
• Nominal thickness: 12.000 mm (0.472 in.)
• Discard thickness: 10.400 mm (0.409 in.)
• 5-lug pattern with 110 mm bolt circle
• Floating disc mounting and 70 mm center hole diameter

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for corrosion resistance on exposed rotor surfaces, including the hat area. This rotor is specified for rear brake service on 2014-2022 Jeep Cherokee models with the listed brake configurations and 2015-2017 Chrysler 200 rear applications. The 320.58013F rotor measures 278 mm in outside diameter, uses a solid construction, and is engineered with a smooth braking surface for consistent pad contact.

Fits 2014-2019 Jeep Cherokee, rear with 278mm rear disc and single piston front caliper. Fits 2020 Jeep Cherokee, rear with 278mm rear disc and single piston front caliper. Fits 2021 Jeep Cherokee, rear with single piston front calipers. Fits 2022 Jeep Cherokee, rear BR1 and BR3. Fits 2015-2017 Chrysler 200, rear.

Common Brake Service Issues

• Rear rotor wear that has reached discard thickness
• Brake pulsation from uneven rotor surface condition
• Corrosion on the hat or non-friction surfaces
• Noise or reduced braking consistency from worn rear rotors
• Replacement needs during rear brake pad service

Installation Notes and Tips

Verify rotor diameter, center hole, bolt circle, and brake configuration before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, caliper hardware, and parking brake components at the same time. This rotor uses a floating disc mounting design and does not include bearings or an ABS tone ring.

Quality Assurance

Centric GCX Elemental Protection rotors are built with coated surfaces to help resist corrosion on the disc exterior and hat area. Part number 320.58013F is manufactured to match the listed fitment and dimensional specifications for the rear brake system.
