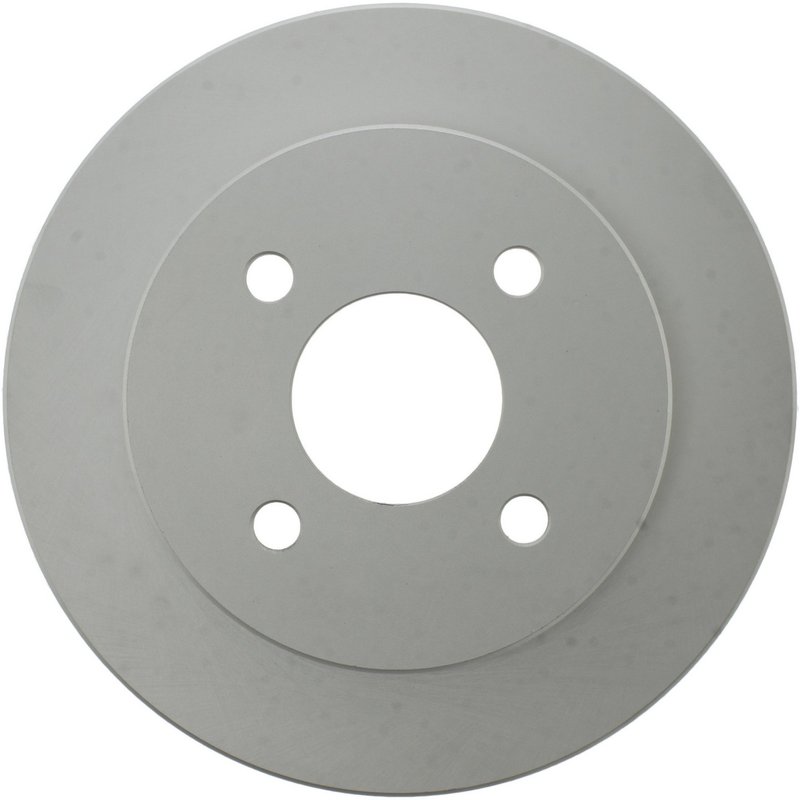

Centric 320.61023F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.61023F offers reliable braking performance for Ford Mustang, Mercury Cougar, and Thunderbird models. Designed with a full coating, this vented rotor provides enhanced corrosion resistance and durability for your vehicle's braking system.

• Part Number: 320.61023F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with curved vanes for improved heat dissipation
• Nominal thickness: 0.945 inches (24.000 mm)
• Discard thickness: 0.896 inches (22.750 mm)
• Outside diameter: 10.161 inches (258.100 mm)
• Overall height: 2.339 inches (59.400 mm)
• Floating disc mounting style
• 4 stud/lug holes with 0.567 inch (14.400 mm) diameter
• Smooth surface finish for consistent pad contact

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is engineered to provide dependable braking for select Ford and Mercury vehicles, including the Mustang, Cougar, and Thunderbird. This rotor features a fully coated disc and hat finish that helps prevent rust and corrosion, extending the rotor's service life. The vented design with curved vanes enhances airflow, which aids in heat dissipation during braking, reducing the risk of brake fade under demanding conditions.

With a nominal thickness of 0.945 inches and a discard thickness of 0.896 inches, this rotor maintains structural integrity and performance throughout its lifespan. The floating disc mounting style allows for slight movement to accommodate thermal expansion, improving rotor longevity and braking consistency. The smooth surface finish ensures even brake pad wear and reliable stopping power.

Compatible Vehicles and Applications

• Ford Mustang
• Mercury Cougar
• Mercury Thunderbird

This rotor is designed specifically for these models, ensuring proper fitment and optimal braking performance. The part number 320.61023F corresponds directly to these applications, making it a suitable replacement for worn or damaged rotors on these vehicles.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Overheating and brake fade during heavy use
• Uneven brake pad wear due to surface imperfections
• Warped or damaged rotors causing vibration
• Reduced braking efficiency from worn rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean hub surface to prevent rotor runout
• Use proper torque specifications on mounting bolts
• Inspect brake pads and replace if worn
• Perform a bed-in procedure after installation for optimal performance

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process provides enhanced corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
