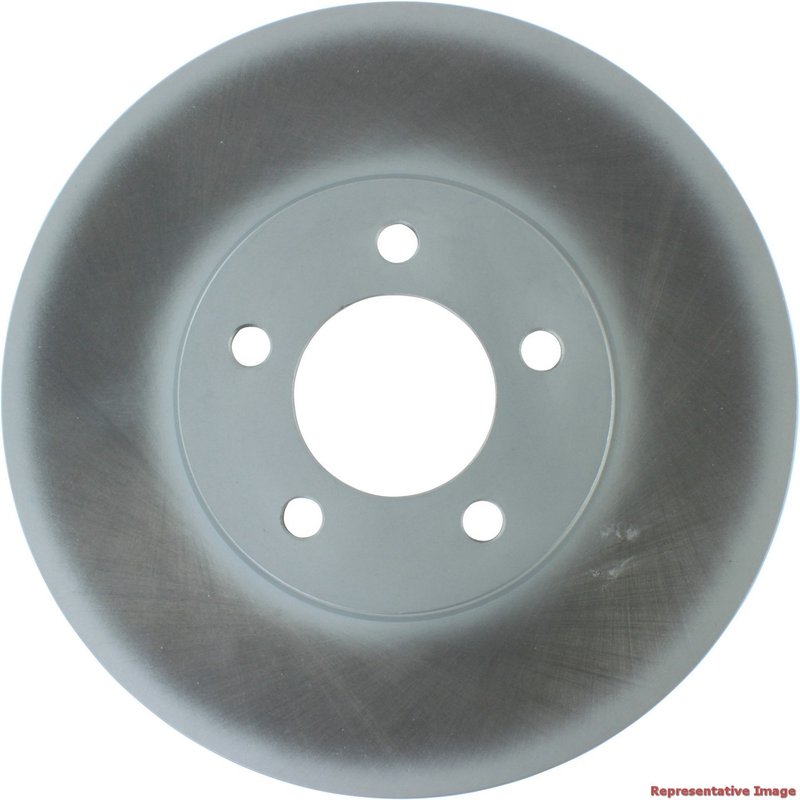

Centric 320.61049F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61049F, is a front vented rotor built for select Chrysler, Ford, Lincoln, and Mercury applications. It features a fully coated disc finish and coated hat finish to help maintain a cleaner rotor surface in everyday driving conditions.

With a 294 mm outside diameter, 26.000 mm nominal thickness, 24.750 mm discard thickness, and straight vane construction, this rotor is built to match the specified front brake setup on vehicles such as the Ford Taurus, Mercury Sable, and Lincoln Continental.

Key Features

• Part number 320.61049F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• 294 mm outside diameter
• 26.000 mm nominal thickness and 24.750 mm discard thickness
• 5-lug pattern with 108.000 mm bolt circle diameter
• Floating disc mounting and smooth surface type
• ABS tone ring not included
• Bearings not included

Detailed Description

Centric GCX Elemental Protection Disc Brake Rotors are built for front brake service where correct dimensions and consistent rotor construction matter. This rotor measures 11.575 inches in outside diameter, 1.024 inches nominal thickness, and 1.835 inches overall height, with a 2.795 inch center hole diameter and 0.559 inch stud/lug hole diameter. The fully coated finish covers the disc and hat surfaces, while the vented, straight-vane design supports heat management during repeated stops.

This part number 320.61049F fits 2001-2007 Ford Taurus, front; 2001-2005 Mercury Sable, front; 1995-2002 Lincoln Continental, front; 1993-1998 Lincoln Mark VIII, front; 2001-2004 Chrysler Cirrus, front; 2006-2010 Chrysler Cirrus, front; 1996-1999 Ford Taurus, front; 1996-1997 Ford Thunderbird, front with 294mm front disc and Sport Pkg; and 1996-1997 Mercury Cougar, front with Sport Pkg. It is also a direct-fit front rotor option for drivers searching for a Ford Taurus front brake rotor, Mercury Sable front disc brake rotor, or Lincoln Continental front rotor replacement.

What This Rotor Helps Address

• Brake pulsation caused by worn or out-of-spec front rotors
• Reduced braking consistency from rotor wear beyond discard thickness
• Surface corrosion on exposed rotor areas
• Noise or vibration related to uneven rotor condition
• Front brake service needs on specified Chrysler, Ford, Lincoln, and Mercury models

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and bolt pattern before installation. This rotor uses a floating disc mounting style and a 5-lug, 108.000 mm bolt circle configuration, so it should be matched to the vehicle’s original front brake specification. Inspect pads, calipers, and hub surfaces during service to help ensure even contact and proper brake operation. For 1996-1997 Ford Thunderbird and Mercury Cougar applications, confirm the 294 mm front disc and Sport Package requirement before ordering.

Quality Assurance

Centric manufactures brake components for OE-style replacement applications, and the GCX Elemental Protection line adds full coating coverage to help protect the rotor surfaces from environmental exposure. Part number 320.61049F is built to the listed dimensional and fitment specifications for the confirmed front applications.
