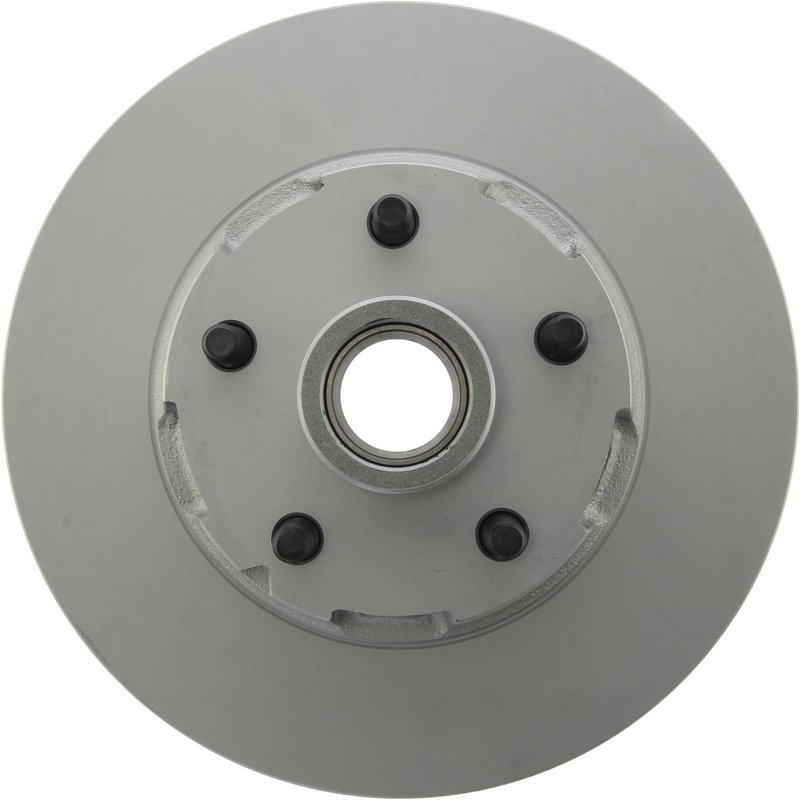

Centric 320.61053F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Ford Mustang, Mercury Cougar, and Villager models. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability.

• Part Number: 320.61053F
• Fully coated disc and hat for corrosion protection
• Vented rotor design with 40 OEM vane count for improved heat dissipation
• Nominal thickness: 0.827 inches (21.000 mm)
• Discard thickness: 0.780 inches (19.800 mm)
• Outside diameter: 11.335 inches (287.900 mm)
• Stud/Lug hole quantity: 5 with 0.622 inches (15.800 mm) diameter
• Compatible with Ford Mustang, Mercury Cougar, and Villager

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.61053F) are engineered to meet or exceed OEM specifications for select Ford and Mercury vehicles. Featuring a vented rotor design with 40 vanes, these rotors efficiently dissipate heat to reduce brake fade during extended use. The fully coated disc and hat finish provide a protective barrier against rust and corrosion, extending the rotor's service life. With a nominal thickness of 0.827 inches and a discard thickness of 0.780 inches, these rotors maintain structural integrity and performance throughout their lifespan. The smooth surface finish ensures consistent brake pad contact and quiet operation.

Compatible Vehicles and Applications

• Ford Mustang
• Mercury Cougar
• Mercury Villager

This rotor is designed specifically for these models, ensuring proper fitment and optimal braking performance. It is ideal for replacing worn or damaged rotors to restore braking efficiency and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Brake fade due to overheating
• Uneven rotor wear causing vibration or noise
• Reduced braking performance from worn rotors
• Rotor warping or thickness below discard limits

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.61053F, ensure the rotor surface is clean and free of debris. Verify the rotor thickness is above the discard limit of 0.780 inches before installation. Use proper torque specifications for the 5 lug studs with 0.622 inch diameter holes. This rotor mounts to the hub and rotor assembly and does not include bearings or ABS tone rings. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric Parts are manufactured to meet strict quality standards and OEM specifications. The GCX Elemental Protection line features full coating to resist corrosion and extend rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
