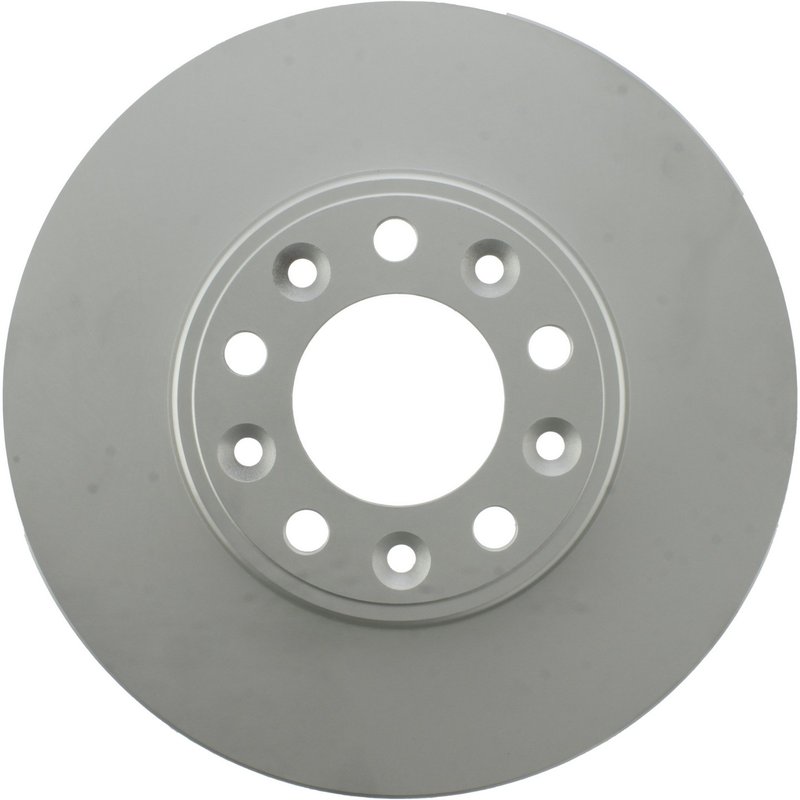

Centric 320.61057F Disc Brake Rotor - Front, Front Left or Front Right

Centric GCX Rotor for Windstar Front Brakes

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61057F, is built for 1999-2003 Ford Windstar front brake applications. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining the braking surface needed for consistent stopping performance.

• Fits 1999-2003 Ford Windstar, front right
• Fits 1999-2003 Ford Windstar, front left
• Fits 1999-2003 Ford Windstar, front
• Fully coated disc finish and coated hat for added corrosion protection
• Vented rotor design with smooth surface type
• Application-specific metallurgy matched to OEM-style rotor requirements
• 5-lug pattern with 108 mm bolt circle diameter
• Outside diameter: 282 mm; nominal thickness: 26.000 mm; discard thickness: 24.750 mm

GCX Full Coating Details

Centric’s GCX Full Coating line is engineered around vehicle-specific coating patterns and metallurgy so the rotor matches the brake pad friction type and the original equipment material profile. For the Ford Windstar, part number 320.61057F uses a vented, straight-vane design with a floating mounting configuration, 71.100 mm center hole diameter, and 46.300 mm overall height to support proper front brake service fitment.

This rotor is a direct-fit choice for Ford Windstar front brake repair when you need a coated replacement that addresses corrosion on non-mating surfaces without changing the OE-style braking layout. The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is a practical option for maintaining clean rotor appearance and stable brake performance over time. Part number 320.61057F is also referenced as 320.61057F for catalog and search use.

Common Problems This Rotor Helps Address

• Rust buildup on the rotor hat and outer surfaces
• Brake pulsation caused by worn or out-of-spec front rotors
• Noisy braking from uneven rotor wear
• Reduced braking consistency from rotor thickness loss
• Corrosion-related appearance issues on exposed brake components

Installation Notes

Verify rotor dimensions, hub fit, and front left or front right application before installation on a 1999-2003 Ford Windstar. Clean the hub mounting surface, inspect pads and calipers, and confirm the rotor seats flat on the hub. Because this rotor is fully coated, avoid contaminating the braking surface during handling and follow standard brake bedding procedures after installation.

Quality Assurance

Centric designs GCX rotors to match OE performance targets while using coated non-mating surfaces for improved rust and corrosion resistance. The brand’s application-specific coating pattern and metallurgy selection are intended to align with the vehicle’s original brake requirements for the Ford Windstar platform.
