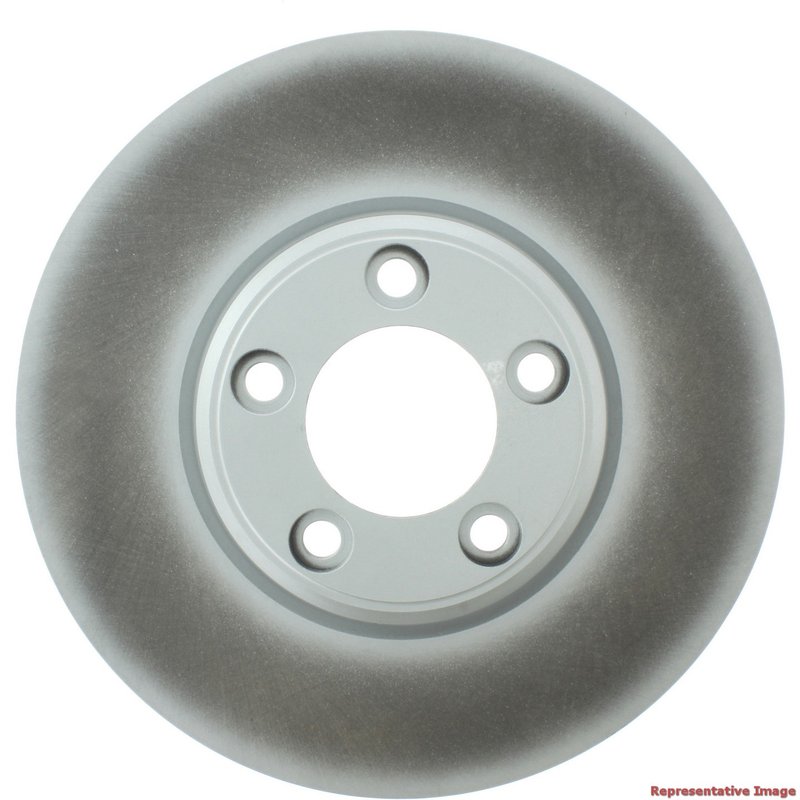

Centric 320.61060F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61060F, is a front vented rotor built for select Lincoln, Ford, and Jaguar applications. It features a fully coated disc finish and coated hat finish to help protect exposed surfaces while maintaining a smooth braking surface.

Compatible With 2000-2006 Lincoln LS front, 2002-2005 Ford Thunderbird front, and 2000-2005 Jaguar S-Type front applications, this rotor is sized for 300mm front disc setups on listed Jaguar S-Type models with standard suspension.

Key Features

• Part number 320.61060F
• Fully coated disc finish for added surface protection
• Coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type
• Outside diameter: 11.811 in. / 300.000 mm
• Nominal thickness: 1.181 in. / 30.000 mm
• Discard thickness: 1.102 in. / 28.000 mm
• Floating disc mounting
• 5-lug pattern with 108.000 mm bolt circle diameter

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built around corrosion-resistant coating coverage on both the disc and hat areas, helping preserve the rotor’s appearance and exposed metal surfaces. The vented construction and straight vane layout support heat management in front brake service, while the smooth friction surface provides the braking interface expected for OE-style replacement use. This rotor is a direct fit for front brake service on select Lincoln LS, Ford Thunderbird, and Jaguar S-Type vehicles, including 300mm front disc Jaguar S-Type applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Rotor Can Address

• Front brake pulsation from worn rotor surfaces
• Visible rust on uncoated rotor hats and edges
• Reduced braking consistency from rotor wear beyond discard thickness
• Noise caused by uneven or heat-affected rotor surfaces
• Service replacement for front brake maintenance on listed vehicles

Installation Notes and Tips

Verify rotor diameter, center hole diameter, bolt circle, and front position before installation. Confirm the vehicle uses the listed 300mm front disc configuration where applicable, especially on Jaguar S-Type models. Inspect pads, calipers, and hub surfaces during brake service, and measure rotor thickness to confirm the existing part is at or below discard limits before replacement.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces and OE-style dimensions for consistent fitment on the listed applications. Part number 320.61060F is specified for front brake service on 2000-2006 Lincoln LS, 2002-2005 Ford Thunderbird, and 2000-2005 Jaguar S-Type models.
