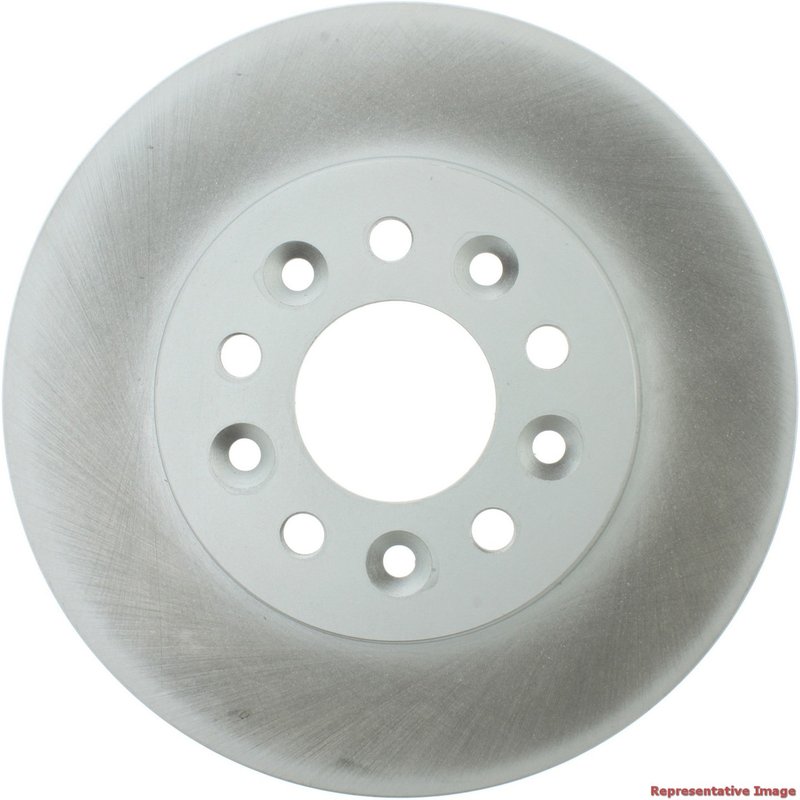

Centric 320.61078F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford Freestar

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.61078F) is engineered to provide consistent braking performance for your Ford Freestar. Designed with a fully coated surface and vented construction, this rotor offers durability and corrosion resistance for extended service life.

• Fully coated disc and hat finish for enhanced corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.181 inches (30.000 mm) with discard thickness at 1.118 inches (28.400 mm)
• Outside diameter measures 11.535 inches (293.000 mm) for precise fitment
• Floating disc mounting and smooth surface type for reliable braking
• Five stud/lug holes with 0.579 inch (14.700 mm) diameter and 4.500 inch (114.300 mm) bolt circle diameter
• Overall height of 1.890 inches (48.000 mm) and center hole diameter of 2.795 inches (71.000 mm)
• Weight approximately 19.5 lbs (8.86 kgs)

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with comprehensive corrosion resistance through a full coating process. This coating covers both the disc surface and the hat, helping to prevent rust and extend rotor life, especially in environments prone to moisture and road salt. The vented design with straight vanes enhances heat dissipation, reducing the risk of brake fade during extended use. This rotor line is engineered to meet or exceed OEM specifications for fit and function.

Product Details and Specifications

This disc brake rotor is specifically designed for the Ford Freestar, ensuring compatibility and proper fitment. The rotor features a vented design with straight vanes to promote efficient cooling, which helps maintain braking performance under demanding conditions. The fully coated finish on both the disc and hat surfaces provides protection against corrosion, which is critical for maintaining rotor integrity over time. The floating disc mounting style allows for slight movement to reduce stress and improve rotor longevity. With a smooth surface type, this rotor is ready for optimal pad contact and braking efficiency.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded or rusted rotors to improve braking reliability
• Addressing brake fade due to overheating with vented rotor design
• Restoring proper rotor thickness to maintain safe braking distances
• Ensuring proper fitment and compatibility for Ford Freestar brake systems

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.61078F, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the rotor thickness meets the minimum discard thickness of 1.118 inches (28.400 mm) to maintain safety standards. Use the correct torque specifications for the five lug holes with a 4.500 inch bolt circle diameter. Since this rotor does not include bearings or an ABS tone ring, reuse existing components if applicable. Proper bedding-in of brake pads after installation is recommended to optimize braking performance.

Quality Assurance and Warranty

Centric manufactures this rotor to meet or exceed OEM standards for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers coverage against manufacturing defects. For detailed warranty information, refer to Centric's official documentation or contact the manufacturer directly.
