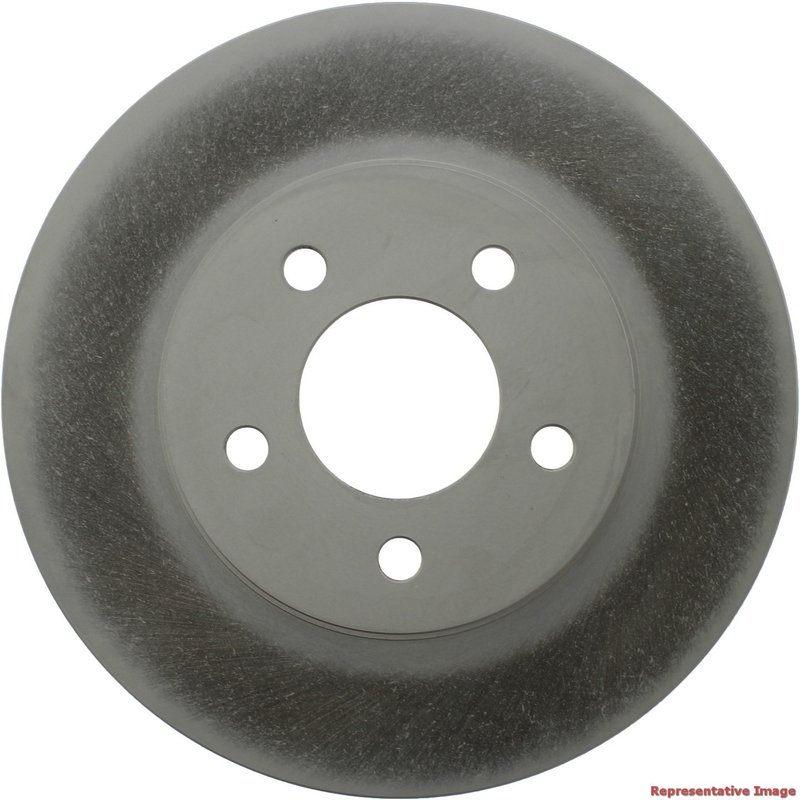

Centric 320.61085F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotor

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.61085F) is engineered for Ford Mustang models requiring reliable braking performance. This vented, fully coated rotor offers enhanced corrosion resistance and consistent stopping power under various driving conditions.

• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.177 inches (29.9 mm) with discard thickness at 1.118 inches (28.4 mm)
• Outside diameter of 11.535 inches (293 mm) suitable for specific Ford Mustang applications
• Floating disc mounting and smooth surface finish for consistent brake pad contact
• Five stud/lug holes with 0.599 inch (15.22 mm) diameter and 4.5 inch (114.3 mm) bolt circle diameter
• Overall height of 1.89 inches (48 mm) and center hole diameter of 2.795 inches (71 mm)
• Weight approximately 17 lbs (7.73 kgs)

Details on Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide enhanced durability and corrosion resistance through a complete coating process on both the disc and hat surfaces. This full coating helps protect the rotor from rust and environmental damage, extending the service life of the rotor especially in regions prone to moisture and road salt exposure. The vented rotor design with straight vanes improves airflow and heat dissipation, reducing the risk of brake fade during extended use. The floating disc mounting system allows for slight movement to accommodate thermal expansion and maintain optimal contact with brake pads.

Product Application and Problem Solving

• Replacement for worn or warped rotors on Ford Mustang models
• Addresses rotor corrosion and rust issues common in humid or salted road environments
• Helps reduce brake fade caused by overheating during aggressive or prolonged braking
• Improves braking consistency with smooth surface finish and proper thickness specifications
• Suitable for restoring proper brake rotor dimensions to factory specifications

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.118 inches) before installation
• Clean mounting surfaces and hub to prevent runout and vibration
• Use proper torque specifications for the five lug bolts on the 4.5 inch bolt circle
• Check compatibility with ABS sensors as this rotor does not include an ABS tone ring
• Inspect brake pads for wear and replace if necessary to ensure optimal rotor performance

Quality Assurance and Warranty

Centric Parts manufactures this rotor to meet or exceed OEM specifications for fit, form, and function on Ford Mustang vehicles. The full coating process is applied under controlled conditions to ensure consistent corrosion resistance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer documentation.
