Centric 320.61086F Disc Brake Rotor - FrontOE Quality 60-Day Returns
Part #: 320.61086F

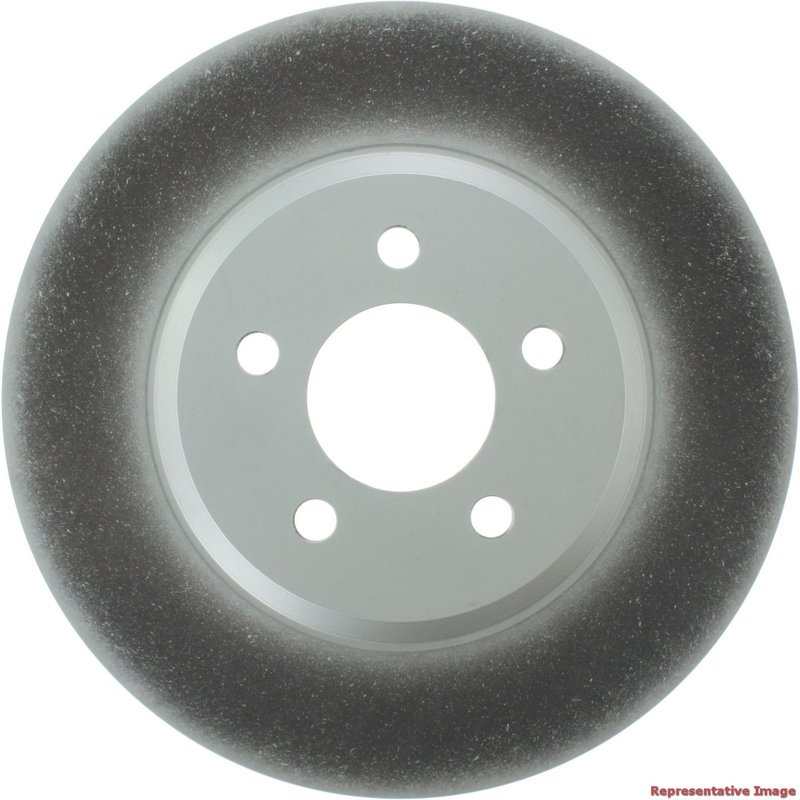

Centric 320.61086F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
16 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$61.16Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Fitment: Ford, Mustang
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Disc Brake Rotor options
Centric 320.61086F Disc Brake Rotor - Front
BrandCentric
Part Number320.61086F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.118
Discard Thickness28.400
Nominal Thickness1.181
Nominal Thickness30.000
Disc FinishFully coated
Hat FinishCoated
Overall Height1.898
Overall Height48.200
Outside Diameter12.425
Outside Diameter315.600
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.795
Center Hole Diameter71.000
Mounting Bolt Hole Circle Diameter114.300
Mounting Bolt Hole Circle Diameter4.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.594
Stud/Lug Hole Diameter15.100
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]0
Vane Style [cntrc]Straight
Weight [cntrc] kgs9.110
Weight [cntrc] lbs20.050

This part fits 16 vehicles. Search below:

YearMakeModelSubmodelTransmissionLitersCylindersPositionNotes
2014FordMustangManual3.7LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2014FordMustangAutomatic3.7LV6FrontBase Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2013FordMustangManual3.7LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2013FordMustangAutomatic3.7LV6FrontBase Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2012FordMustangBaseFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2011FordMustang3.7LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2010FordMustangGT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009FordMustangGT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009FordMustangBullitt4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008FordMustangShelby GT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008FordMustangGT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008FordMustangBullitt4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007FordMustangShelby GT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007FordMustangGT4.6LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006FordMustangGTFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005FordMustangGTFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
