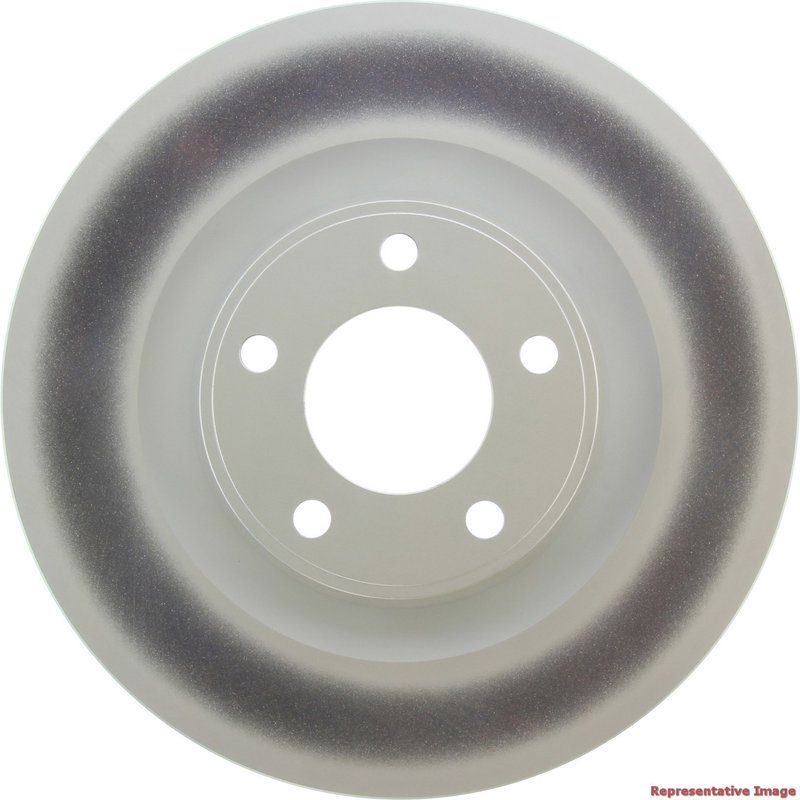

Centric 320.61090F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.61090F is engineered for reliable braking performance on Ford Edge and Lincoln MKX models. Featuring a full coating, this rotor offers enhanced corrosion resistance and durability for long-term use.

• Full coating on disc and hat for superior rust protection
• Vented rotor design for improved heat dissipation
• Floating disc mounting for better rotor alignment
• Compatible with 5-lug wheel setups on Ford Edge and Lincoln MKX
• Nominal thickness of 1.102 inches (28.000 mm) with discard thickness at 1.024 inches (26.000 mm)
• Outside diameter of 12.598 inches (320.000 mm) ensuring precise fitment
• Smooth surface finish for consistent braking contact

Detailed Product Description

This Centric GCX Elemental Protection Disc Brake Rotor 320.61090F is designed specifically for Ford Edge and Lincoln MKX vehicles requiring a vented, fully coated rotor. The full coating on both the disc and hat surfaces helps prevent corrosion, extending the rotor's service life in various driving conditions. The vented design with straight vanes enhances heat dissipation, reducing the risk of brake fade during heavy braking. The floating disc mounting system allows for slight movement to maintain optimal rotor alignment and minimize uneven wear. With a smooth surface finish, this rotor ensures consistent pad contact and braking performance.

Centric GCX Elemental Protection Product Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with comprehensive corrosion resistance through a full coating process. This product line is tailored for drivers who need durable rotors that maintain performance and appearance over time, especially in environments prone to rust and corrosion. The 320.61090F rotor is a part of this line, offering a balance of protection and functional design for Ford Edge and Lincoln MKX models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded rotors to prevent rust-related braking issues
• Addressing brake fade due to insufficient heat dissipation
• Fixing uneven brake pad wear caused by rotor misalignment
• Improving braking consistency on Ford Edge and Lincoln MKX vehicles

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.024 inches (26.000 mm) before installation. The rotor features a 5-lug hole pattern with a 4.500 inch (114.300 mm) bolt circle diameter, compatible with Ford Edge and Lincoln MKX wheel hubs. No ABS tone ring or bearings are included, so verify compatibility with your vehicle’s existing components. Proper cleaning of the rotor surface before pad installation is recommended to remove any protective coating residue.

Quality Assurance and Warranty

Centric rotors undergo rigorous quality control to meet OEM specifications for fit, form, and function. The full coating process enhances corrosion resistance, contributing to the rotor’s longevity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
