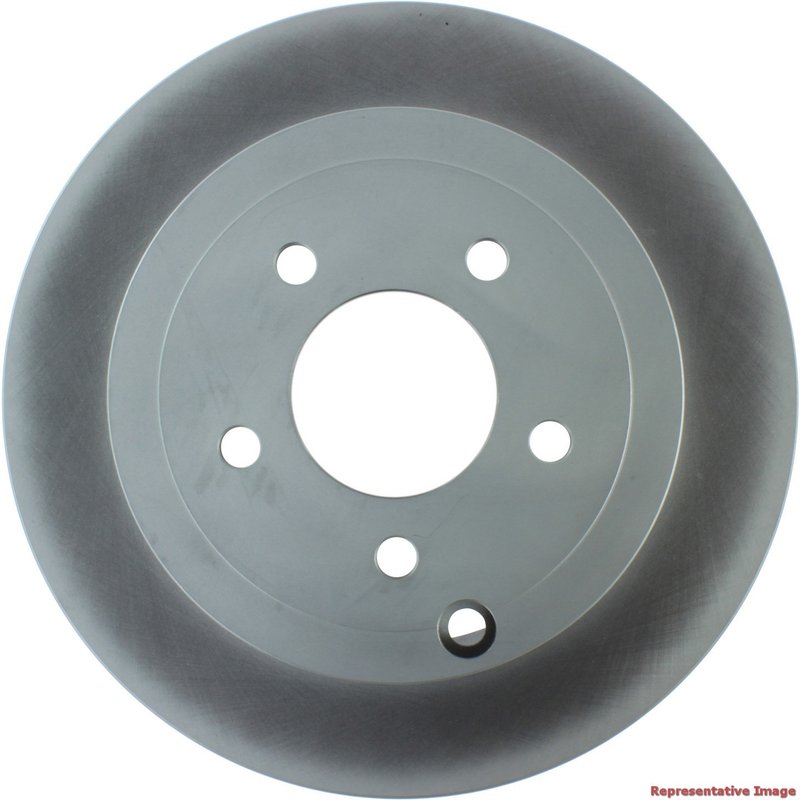

Centric 320.61091F Disc Brake Rotor - Rear

Rear Brake Rotor for Ford Edge and Lincoln MKX

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61091F, is a rear vented rotor built for 2007-2010 Ford Edge and 2007-2010 Lincoln MKX applications. It features a fully coated disc finish and coated hat finish to help protect exposed surfaces while maintaining a smooth braking surface.

Key Features

• Fits 2007-2010 Ford Edge, rear
• Fits 2007-2010 Lincoln MKX, rear
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Part number 320.61091F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• Smooth surface type for rear disc brake service
• 5-lug pattern with 114.3 mm bolt circle
• Outside diameter: 302 mm (11.890 in)
• Nominal thickness: 18.000 mm (0.709 in)

Product Details

The Centric GCX Elemental Protection line focuses on corrosion-resistant surface treatment across the rotor, including the hat and disc areas. This rotor uses a floating/DIH mounting style, a 72 mm center hole diameter, and a 5-hole lug pattern with 14 mm lug holes. The rear rotor measures 56.000 mm in overall height and weighs 6.850 kg (15.070 lb), making it a direct-fit service part for the listed Ford Edge and Lincoln MKX rear brake applications. The part number 320.61091F is a practical choice when replacing worn rear brake rotors on these vehicles.

Common Reasons to Replace

• Brake pulsation from rotor wear or thickness variation
• Reduced braking smoothness from scored or uneven rotor surfaces
• Corrosion on the rotor hat or non-friction surfaces
• Noise caused by worn rear brake components
• Service replacement for rear brake maintenance on Ford Edge and Lincoln MKX models

Installation Notes

Verify rear axle fitment, rotor dimensions, and hub contact surfaces before installation. Clean the hub face thoroughly to reduce runout concerns, and inspect pads, calipers, and hardware condition during brake service. Confirm the rotor matches the vehicle’s rear brake configuration for the listed Ford Edge and Lincoln MKX model years. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric’s GCX Elemental Protection rotor line is built with coated surfaces to help resist corrosion on exposed areas while supporting consistent brake service. Part number 320.61091F is engineered for the specified rear fitments and dimensional requirements listed above.
