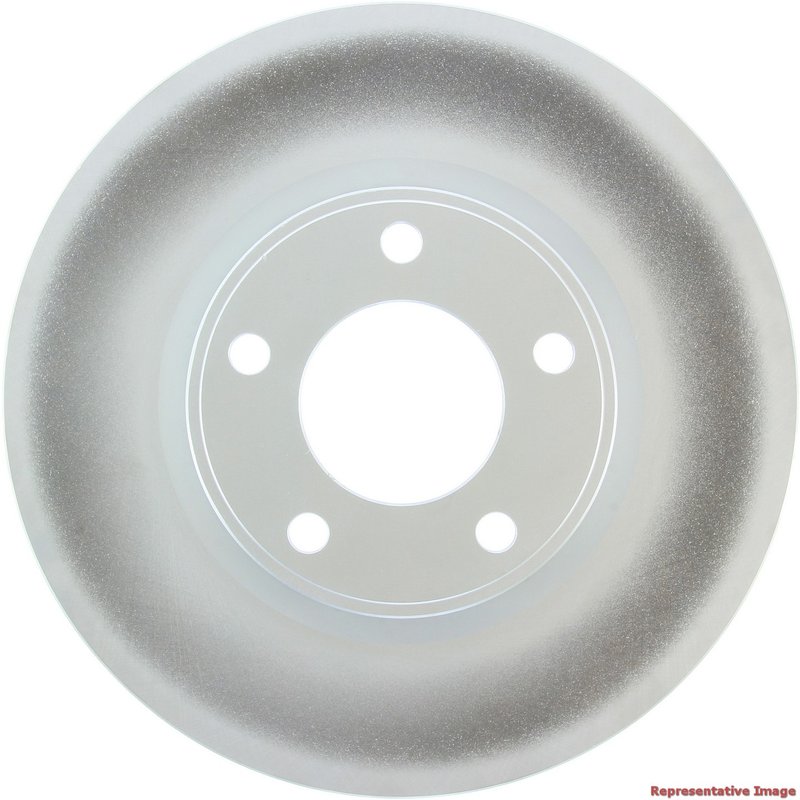

Centric 320.61092F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Ford Edge and Lincoln MKX

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61092F, is a front vented rotor built for 2007-2009 Ford Edge and 2007-2009 Lincoln MKX applications with a 296 mm front disc diameter. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces.

Centric’s GCX Elemental Protection line focuses on coated rotor protection for everyday street use, making this rotor a practical OE-style replacement for front brake service on the Ford Edge and Lincoln MKX.

Key Features

• Part number 320.61092F
• Fits front brake applications on 2007-2009 Ford Edge and 2007-2009 Lincoln MKX
• 296 mm outside diameter with vented construction
• Fully coated disc finish and coated hat finish
• Smooth surface type for brake pad contact
• Straight vane style
• 5-lug design with 114.3 mm bolt circle and 72 mm center hole diameter
• Floating disc mounting design

Detailed Description

This Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61092F, is engineered for front axle service on the Ford Edge and Lincoln MKX with the specified 296 mm rotor diameter. The vented rotor design supports front brake heat management, while the smooth braking surface helps provide consistent pad contact during routine braking. The fully coated disc and coated hat finish add corrosion protection to exposed metal surfaces, which is especially relevant for vehicles driven in wet or salted-road conditions.

With a nominal thickness of 28.0 mm and discard thickness of 26.0 mm, this rotor is built to match the listed application dimensions. The straight vane layout, 5-lug pattern, and floating mounting configuration align with the OE-style fitment requirements for these front brake setups. If you are searching for a front brake rotor for 2007-2009 Ford Edge or 2007-2009 Lincoln MKX, part number 320.61092F is the direct fitment reference to verify against your vehicle.

What This Rotor Helps Address

• Front brake pulsation caused by worn or uneven rotor surfaces
• Corrosion on exposed rotor areas and hat surfaces
• Brake noise related to degraded rotor finish or surface condition
• Reduced braking consistency from rotor wear beyond service limits
• Fitment issues when replacing a 296 mm front disc rotor

Installation Notes and Tips

Confirm rotor diameter, center hole diameter, bolt circle, and front position before installation. This rotor is listed for front use only on the specified Ford Edge and Lincoln MKX applications. Inspect pads, caliper hardware, and hub condition during brake service, and measure rotor thickness to confirm the existing rotor has reached service limits before replacement.

Quality Assurance

Centric GCX Elemental Protection rotors are built with coated surfaces to help protect against corrosion and maintain a cleaner appearance over time. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
