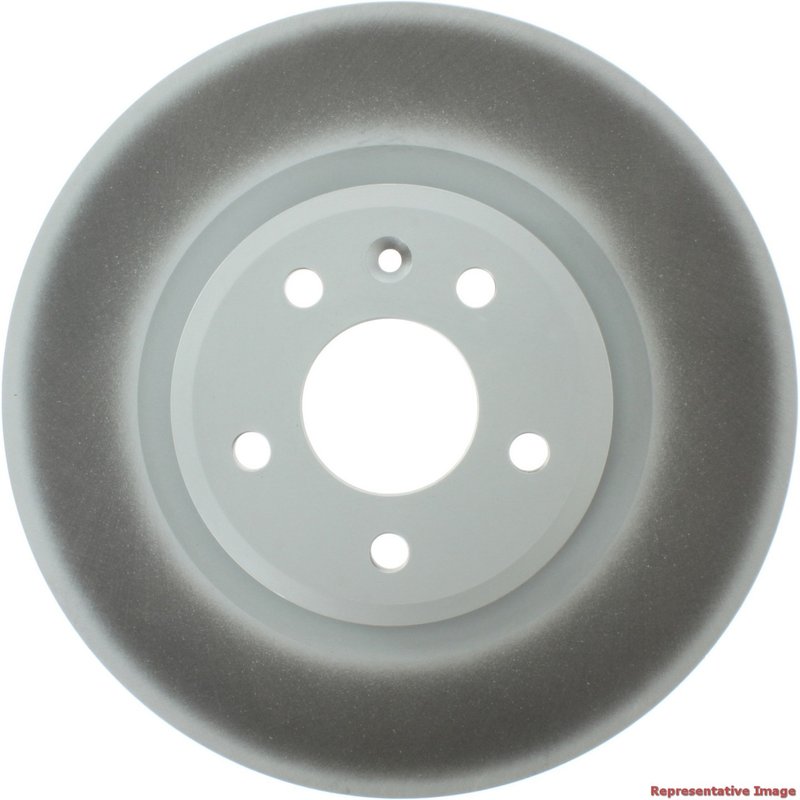

Centric 320.61094F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61094F, is a front vented rotor built for select Ford, Lincoln, and Taurus applications. It features a fully coated disc finish and coated hat finish to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.

Compatible With 2009-2010 Ford Flex front, 2010 Ford Taurus front, 2009-2010 Lincoln MKS front, and 2010 Lincoln MKT front. The 320.61094F is sized for vehicles that use a 12.811-inch outside diameter, 5-lug mounting pattern, and floating disc mounting design.

Key Features

• Fully coated disc finish with coated hat finish for added surface protection
• Vented rotor design for front brake applications
• Smooth friction surface for consistent pad contact
• 12.811-inch outside diameter and 1.181-inch nominal thickness
• 5-lug pattern with 114.3 mm bolt circle diameter
• Straight vane style and floating disc mounting configuration
• Part number 320.61094F for fitment-specific ordering

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built around corrosion-resistant surface treatment and OE-style dimensions for direct replacement use on the listed front axle applications. This rotor measures 325.4 mm in outside diameter, 68.0 mm center hole diameter, 47.1 mm overall height, and 30.0 mm nominal thickness, with a 28.5 mm discard thickness specification. The smooth, vented construction supports stable braking performance on daily-driven vehicles such as the Ford Flex, Ford Taurus, Lincoln MKS, and Lincoln MKT.

The 320.61094F is a practical choice when replacing worn front rotors on vehicles that require the specified hub and bolt pattern dimensions. Its coated finish helps protect non-friction surfaces from environmental exposure, while the vented straight-vane design supports heat management during repeated stops.

Common Problems This Rotor Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Visible corrosion on the hat and outer surfaces of the rotor
• Reduced braking consistency from worn front rotors
• Noise or vibration associated with uneven rotor surfaces
• Service replacement for front brake maintenance on listed Ford and Lincoln models

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related issues, and inspect brake pads and caliper hardware for wear before installing the new rotor. Proper bedding-in of new pads and rotors helps establish even friction transfer and stable pedal feel.

Fits 2009-2010 Ford Flex, front; fits 2010 Ford Taurus, front; fits 2009-2010 Lincoln MKS, front; fits 2010 Lincoln MKT, front. Part number 320.61094F should be matched to the vehicle’s front brake specification before service.

Quality Assurance

Centric GCX rotors are engineered with coated surfaces and application-specific dimensions to support consistent replacement fitment on the listed vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
