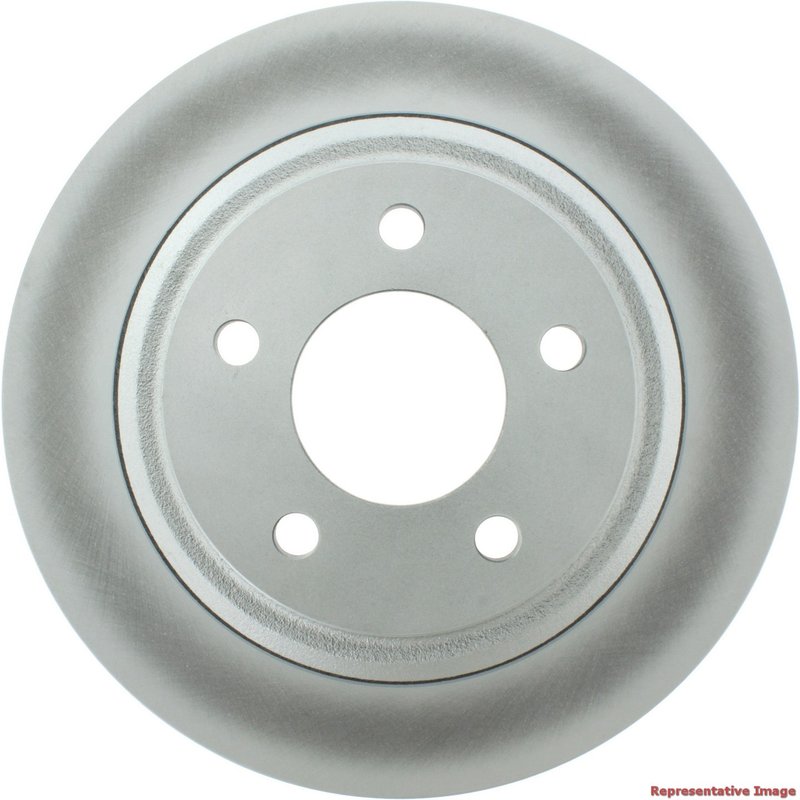

Centric 320.61095F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Ford and Mazda trucks. Designed specifically for models like the Ford Ranger, B2300, and B4000, these rotors offer enhanced durability with a fully coated finish to resist corrosion and wear.

• Part Number: 320.61095F
• Fully coated disc and hat finish for corrosion resistance
• Vented rotor design for improved heat dissipation
• Nominal thickness: 0.748 inches (19.000 mm)
• Outside diameter: 11.618 inches (295.100 mm)
• 5 lug holes with 0.563 inch (14.300 mm) diameter
• Compatible with Ford Ranger, B2300, B4000 models

Detailed Product Features and Specifications

This Centric GCX Elemental Protection Disc Brake Rotor features a vented design with straight vanes to enhance cooling during braking, reducing the risk of brake fade. The rotor has a nominal thickness of 0.748 inches (19.000 mm) and a discard thickness of 0.709 inches (18.000 mm), ensuring a long service life before replacement is necessary. The fully coated disc and hat finish protect against rust and corrosion, which is especially important for vehicles exposed to harsh weather or road conditions.

The rotor measures 11.618 inches (295.100 mm) in outside diameter and has an overall height of 2.433 inches (61.800 mm). It includes five lug holes with a diameter of 0.563 inches (14.300 mm) arranged on a 4.500 inch (114.300 mm) bolt circle diameter. The center hole diameter is 2.803 inches (71.200 mm), designed for a floating/dih disc mounting style. This rotor does not include an ABS tone ring or bearings.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating to extend rotor life and maintain braking performance. This product line is engineered to meet or exceed OEM specifications, offering a smooth surface finish and corrosion resistance that helps maintain consistent braking under various driving conditions. The full coating on both the disc and hat ensures protection from environmental elements, making it suitable for Ford and Mazda trucks that require durable brake components.

Applications and Common Issues Addressed

• Replacement for worn or warped rotors on Ford Ranger, B2300, and B4000
• Corrosion and rust prevention in humid or salty environments
• Improved heat dissipation to reduce brake fade during heavy use
• Restores smooth braking performance and pedal feel
• Eliminates vibration or noise caused by uneven rotor surfaces

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.709 inches) before installation
• Clean hub surface to ensure proper rotor seating
• Torque lug nuts to manufacturer specifications for secure fitment
• Check compatibility with vehicle ABS system as this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to optimize braking performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet strict quality standards and OEM specifications. The fully coated finish provides added protection against corrosion, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always refer to the product packaging or Centric’s official documentation for exact warranty terms.
