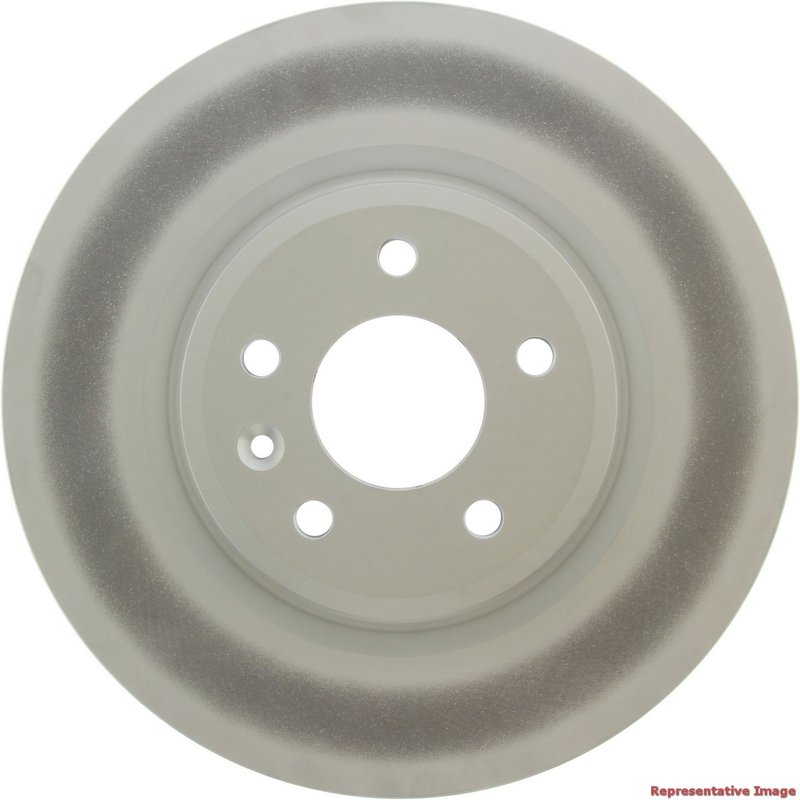

Centric 320.61102F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.61102F, is a front vented rotor built for select Ford, Lincoln, and Mercury applications that use a 325 mm front disc. It features a fully coated disc finish, coated hat finish, and smooth surface to support consistent braking performance while helping resist corrosion on exposed metal surfaces.

For drivers searching for a front brake rotor for a 2014-2019 Ford Explorer, 2013-2019 Ford Flex, or 2011-2019 Ford Taurus, this Centric rotor is built around the listed OE-style dimensions and fitment requirements. The 320.61102F is also listed for 2013-2019 Lincoln MKT front applications and select 2011-2012 Ford and Lincoln models.

Key Features

• Part number: 320.61102F
• Front disc brake rotor for select Ford and Lincoln vehicles
• Fully coated disc finish and coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type
• Outside diameter: 12.795 in. / 325.000 mm
• Nominal thickness: 1.185 in. / 30.100 mm
• Discard thickness: 1.122 in. / 28.500 mm
• 5-lug pattern with 114.300 mm bolt circle
• Floating disc mounting and 1 miscellaneous hole

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built with a full coating approach that covers the disc and hat surfaces for added protection in everyday driving conditions. This rotor uses a vented construction, straight vanes, and a smooth braking surface, with dimensions that match the specified 325 mm front disc applications. The 2.677 in. center hole diameter, 5-lug layout, and 114.300 mm bolt circle support direct-fit replacement use on the listed vehicles.

Compatible With 2014-2019 Ford Explorer, front; 2013-2019 Ford Flex, front; 2011-2019 Ford Taurus, front; and 2013-2019 Lincoln MKT, front. The 320.61102F also appears in select 2011-2012 Ford Explorer, Ford Flex, Lincoln MKS, and Lincoln MKT front applications. If you are replacing worn front rotors on a Ford Explorer, Ford Flex, or Ford Taurus, this Centric rotor is matched to the fitment and brake size details shown above.

What This Rotor Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Corrosion on the rotor hat and exposed braking surfaces
• Reduced braking consistency from worn front rotors
• Noise or vibration related to rotor surface condition
• Service replacement for 325 mm front disc brake applications

Installation Notes

Verify rotor diameter, thickness, center hole diameter, and bolt pattern before installation. This rotor is listed for front position use only and does not include ABS tone ring or bearings. Confirm the vehicle’s brake package, especially standard-duty or standard brake configurations noted in fitment, before ordering. For best results, inspect pads, calipers, and hub surfaces during rotor replacement.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces and OE-style dimensions to support dependable replacement fitment on the listed Ford and Lincoln applications. Part number 320.61102F is specified for the vehicles and front brake configurations shown in the fitment data.
