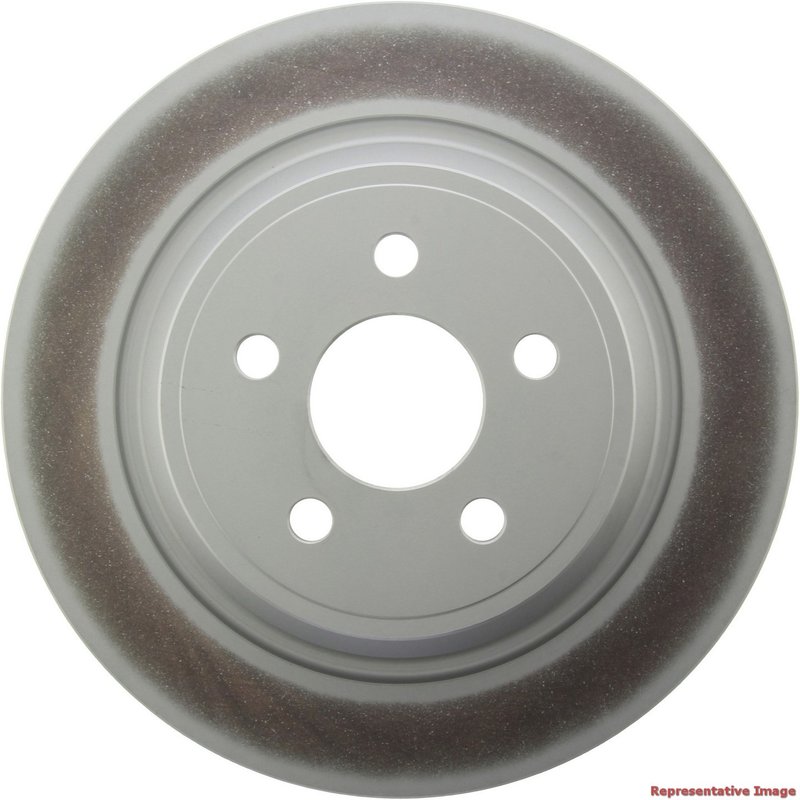

Centric 320.61113F Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Ford and Lincoln Vehicles

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.61113F) is engineered to provide consistent braking performance for select Ford and Lincoln models. Designed with a fully coated disc and hat finish, this rotor offers enhanced corrosion resistance and durability.

• Fully coated disc and hat for corrosion protection
• Solid rotor design with smooth surface finish
• Nominal thickness of 0.433 inches (11.000 mm) and discard thickness of 0.374 inches (9.500 mm)
• Outside diameter of 12.441 inches (316.000 mm)
• Floating disc mounting and 5 lug holes with 0.622 inch (15.800 mm) diameter
• Compatible with Ford Edge, Fusion, Lincoln Continental, MKX, MKZ, and Nautilus

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor's service life and maintains a clean appearance, which is especially beneficial for vehicles exposed to harsh weather conditions. The 320.61113F rotor is part of this line, combining protective finishes with precise manufacturing tolerances to ensure reliable braking performance on compatible Ford and Lincoln models.

Technical Specifications and Features

This solid disc brake rotor features a smooth surface type and a floating disc mounting system, which helps reduce stress and improve rotor longevity. The rotor's overall height measures 2.008 inches (51.000 mm), with a center hole diameter of 2.504 inches (63.600 mm) and a mounting bolt hole circle diameter of 108.000 mm (4.252 inches). Weighing approximately 13.7 lbs (6.22 kgs), it is designed for durability without excessive weight.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Edge, Fusion, Lincoln Continental, MKX, MKZ, and Nautilus
• Addresses rotor corrosion and rust issues with full coating protection
• Improves braking smoothness by replacing rotors with uneven or rough surfaces
• Helps eliminate brake noise caused by damaged or uneven rotors
• Restores proper rotor thickness to maintain safe braking performance

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.374 inches) before installation
• Clean hub surface and mounting area to prevent rotor runout
• Torque lug nuts to manufacturer specifications for proper fitment
• Check compatibility with ABS systems as this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The full coating process provides added corrosion resistance to extend rotor life. While specific warranty details for part number 320.61113F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
