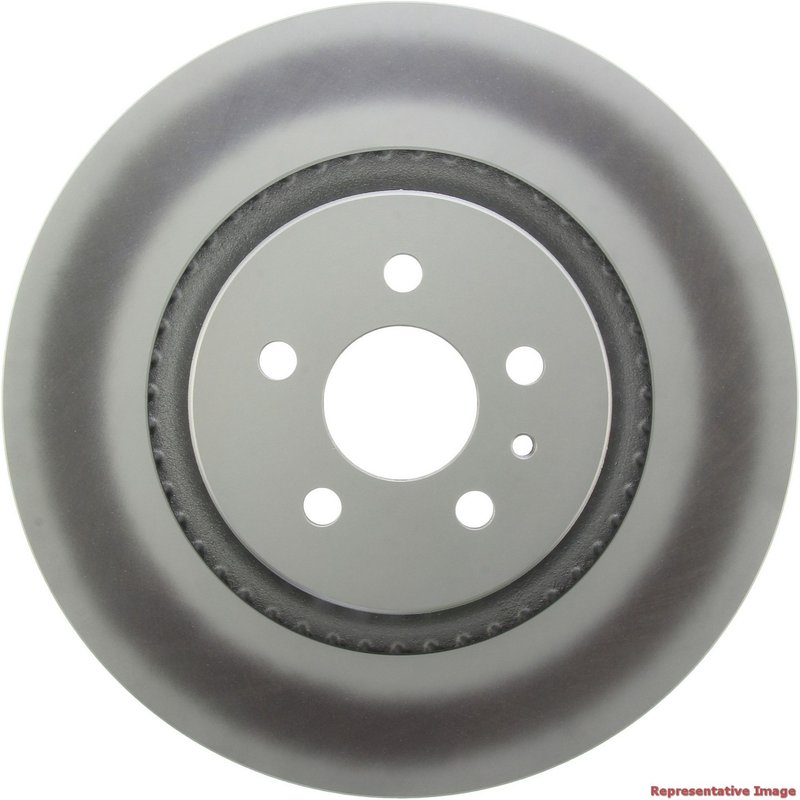

Centric 320.61120H Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content (part number 320.61120H) provide reliable braking performance for select Ford and Lincoln vehicles. Designed with a fully coated finish and high carbon content, these rotors offer enhanced durability and corrosion resistance for models like the Ford Fusion, Edge, and Lincoln MKZ.

• Fully coated disc and hat finish for corrosion protection
• High carbon content for improved heat dissipation and reduced brake noise
• Vented rotor design with 47 straight vanes for efficient cooling
• Floating disc mounting for better rotor alignment and performance
• Compatible with 5-lug wheel configurations and specific bolt patterns

Detailed Product Features and Specifications

This Centric disc brake rotor features a nominal thickness of 1.260 inches (32.000 mm) and a discard thickness of 1.201 inches (30.500 mm), ensuring precise wear limits for safe operation. The rotor has an outside diameter of 13.583 inches (345.000 mm) and an overall height of 2.075 inches (52.700 mm). The vented design includes 47 straight vanes that promote effective heat dissipation during braking, reducing the risk of brake fade. The rotor's smooth surface finish supports consistent pad contact and braking performance.

The hat section is coated to resist corrosion and has a center hole diameter of 2.504 inches (63.600 mm) with a mounting bolt hole circle diameter of 108.000 mm (4.252 inches). It accommodates five lug holes with a diameter of 0.618 inches (15.700 mm). The floating disc mounting system helps maintain rotor alignment under varying thermal and mechanical stresses, contributing to longer rotor life and improved braking consistency.

Compatible Vehicles and Applications

This rotor is compatible with a range of Ford and Lincoln models, including:

• Ford Fusion
• Ford Edge
• Lincoln MKZ
• Lincoln MKX
• Lincoln Continental
• Lincoln Nautilus

Part number 320.61120H is designed specifically for these vehicles, ensuring proper fitment and performance.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Brake noise and vibration due to uneven rotor wear
• Reduced braking efficiency from overheating or brake fade
• Warped or damaged rotors causing pedal pulsation
• Premature rotor wear from inadequate heat dissipation

Installation Notes and Tips

• Verify vehicle compatibility with part number 320.61120H before installation
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Clean mounting surfaces to prevent rotor misalignment
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check for ABS tone ring compatibility; this rotor does not include an ABS tone ring

Quality Assurance and Warranty

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating on both the disc and hat provides enhanced corrosion resistance, extending rotor life. While specific warranty details are not provided here, Centric typically offers a limited warranty covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
