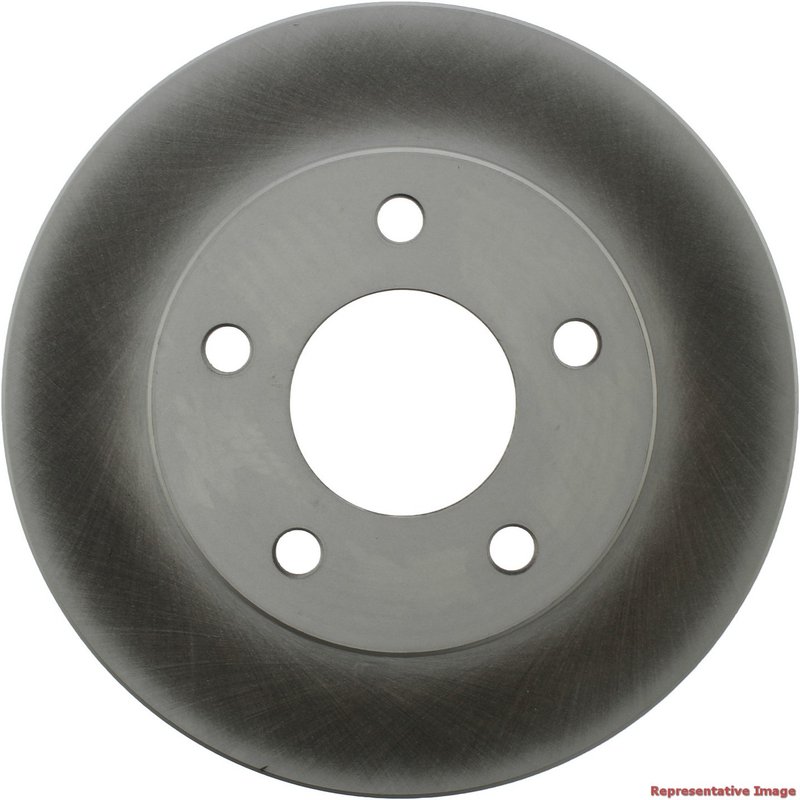

Centric 320.62017F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for a range of GM vehicles including Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability.

• Part Number: 320.62017F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness: 1.035 inches (26.3 mm); discard thickness: 0.957 inches (24.3 mm)
• Outside diameter: 10.248 inches (260.3 mm)
• Overall height: 2.012 inches (51.1 mm)
• Floating disc mounting for better rotor alignment
• 5 lug holes with 0.559 inch (14.2 mm) diameter
• Smooth surface finish for consistent pad contact

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection line focuses on providing rotors with a full coating to protect against rust and corrosion, extending the service life of the brake components. This product line is engineered to meet or exceed OEM specifications, making it suitable for vehicles requiring reliable braking performance and long-term durability. The full coating on both the disc and hat surfaces helps maintain rotor integrity in harsh environments.

Technical Description and Fitment

This disc brake rotor features a vented design with straight vanes to optimize airflow and heat dissipation during braking. The rotor’s nominal thickness of 1.035 inches (26.3 mm) ensures structural strength, while the discard thickness of 0.957 inches (24.3 mm) indicates when replacement is necessary. The rotor measures 10.248 inches (260.3 mm) in outside diameter and 2.012 inches (51.1 mm) in overall height, fitting vehicles with a 5-lug bolt pattern and a mounting bolt hole circle diameter of 4.528 inches (115 mm). The floating disc mounting design allows for slight movement to reduce stress and improve braking consistency.

This rotor is compatible with a variety of GM vehicles, including Buick models like Century and LeSabre, Cadillac models such as DeVille and Eldorado, Chevrolet Lumina APV, Oldsmobile Cutlass and Delta 88, Pontiac Bonneville and Grand Prix, and others like Allante, Seville, and Toronado.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Corrosion protection to prevent rust buildup on braking surfaces
• Improved heat dissipation to reduce brake fade under heavy use
• Restoring proper rotor thickness for safe braking performance
• Addressing uneven pad wear due to rotor surface irregularities

Installation Notes and Tips

• Ensure rotor thickness is within discard limits before installation
• Clean mounting surfaces to prevent rotor misalignment
• Use proper torque specifications on lug nuts to avoid rotor warping
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors are manufactured to meet OEM standards for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always refer to the manufacturer’s warranty documentation for complete terms.
