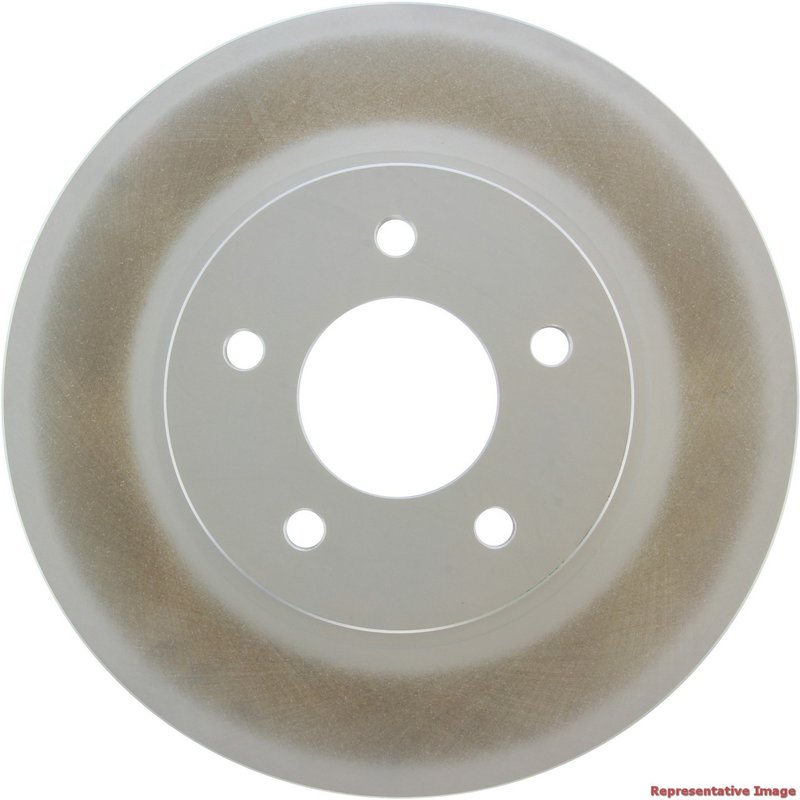

Centric 320.62068F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.62068F, is a front vented rotor built for select Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications. Its fully coated disc finish and coated hat help protect exposed metal surfaces, while the smooth braking surface supports consistent pad contact.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Front position disc brake rotor
• Part number 320.62068F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for even pad engagement
• 5-lug pattern with 115.300 mm bolt circle diameter
• Outside diameter: 296.000 mm (11.654 in)
• Nominal thickness: 26.000 mm (1.024 in)
• Discard thickness: 24.500 mm (0.965 in)

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are part of Centric’s coated rotor lineup, focused on corrosion resistance in exposed brake components. The full coating on the disc and coated hat are specified to help protect the rotor surfaces from environmental exposure, making this rotor a practical choice for daily-driven vehicles that see wet or salted-road conditions.

Fitment

• Fits 2002-2007 Saturn Vue, front
• Fits 2005-2006 Chevrolet Equinox, front
• Fits 2006 Pontiac Torrent, front

What This Rotor Helps Address

• Front brake pulsation caused by worn or uneven rotor surfaces
• Brake noise related to rotor surface irregularities
• Corrosion on exposed rotor and hat surfaces
• Reduced braking consistency from rotor wear beyond service limits
• Fitment issues when replacing a front vented rotor on the listed vehicles

Installation Notes and Tips

Verify rotor dimensions, hub center diameter, bolt circle, and lug count before installation. This rotor uses a floating disc mounting design, has no ABS tone ring included, and does not include bearings. Always inspect pads, calipers, and hub surfaces during brake service, and confirm the rotor is installed on the front axle for the listed Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications.

Quality Assurance

Centric manufactures this rotor to published dimensional specifications, including thickness, diameter, and center hole measurements, to support proper fitment on the listed vehicles. Part number 320.62068F is identified for front brake service on the specified applications.
