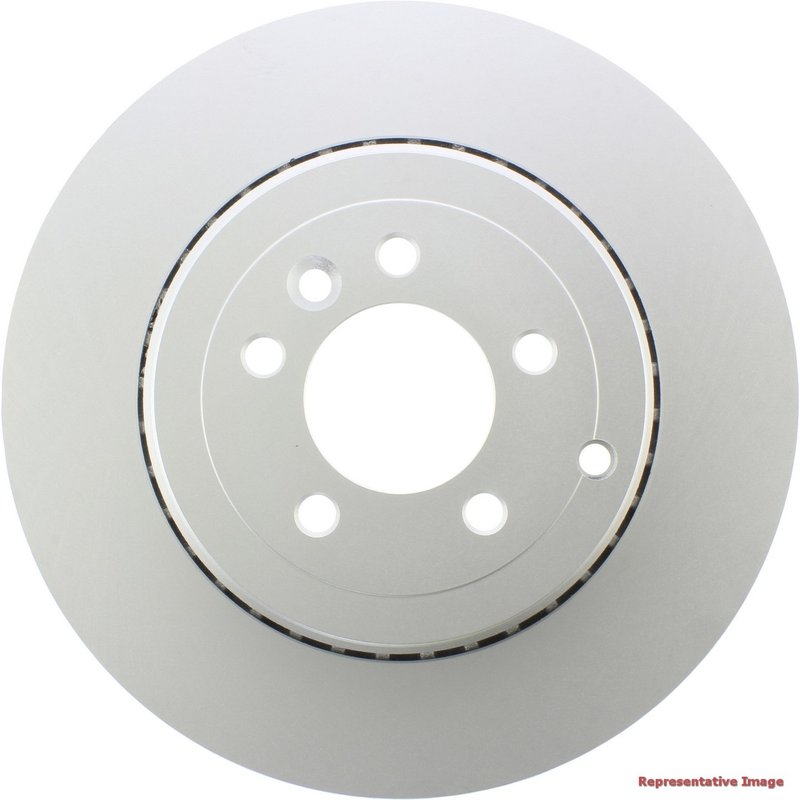

Centric 320.62069F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Cadillac CTS

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.62069F, is a front vented rotor built for 2003-2007 Cadillac CTS models with standard suspension. It combines a fully coated disc finish with a coated hat to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.

Centric’s GCX Elemental Protection line focuses on corrosion resistance and consistent rotor construction for everyday street use. This rotor measures 11.929 inches in outside diameter, 1.260 inches nominal thickness, and 2.055 inches overall height, with a straight vane design and floating disc mounting.

Key Features

• Fits 2003-2005 Cadillac CTS, front, standard suspension
• Fits 2006-2007 Cadillac CTS, front, standard suspension
• Part number 320.62069F for easy identification
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• Smooth surface type for brake pad contact
• 5-lug pattern with 114.300 mm bolt circle
• Center hole diameter: 70.600 mm

Detailed Description

This Centric brake rotor is engineered for front axle service on Cadillac CTS applications listed above. The rotor uses a vented construction with straight vanes to support heat management during repeated stops, while the fully coated finish helps protect non-friction surfaces from rust and oxidation. With a 303.000 mm outside diameter and 32.000 mm nominal thickness, part number 320.62069F is a direct-fit replacement for the specified CTS front brake setup.

For shoppers searching for a front brake rotor for 2003-2007 Cadillac CTS standard suspension, or a Centric GCX rotor for Cadillac CTS front brakes, this part provides the fitment and dimensions needed for a proper replacement. The smooth friction surface is intended for normal pad contact, while the coated hat and disc surfaces help maintain a cleaner appearance over time.

Common Problems This Rotor Can Address

• Brake pulsation caused by worn or uneven front rotors
• Visible rust on exposed rotor surfaces
• Reduced braking consistency from rotor wear
• Noise related to damaged or uneven braking surfaces
• Front brake service needs on Cadillac CTS standard suspension models

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to reduce the chance of rotor runout, and inspect pads, calipers, and hardware condition during brake service. This rotor does not include ABS tone ring or bearings.

Quality Assurance

Centric GCX Elemental Protection rotors are built with coated surfaces and application-specific dimensions for consistent fitment on the listed Cadillac CTS front brake applications. Part number 320.62069F should be matched to the vehicle’s suspension and brake configuration before purchase.
