Centric 320.62071F Disc Brake Rotor - RearOE Quality 60-Day Returns
Part #: 320.62071F

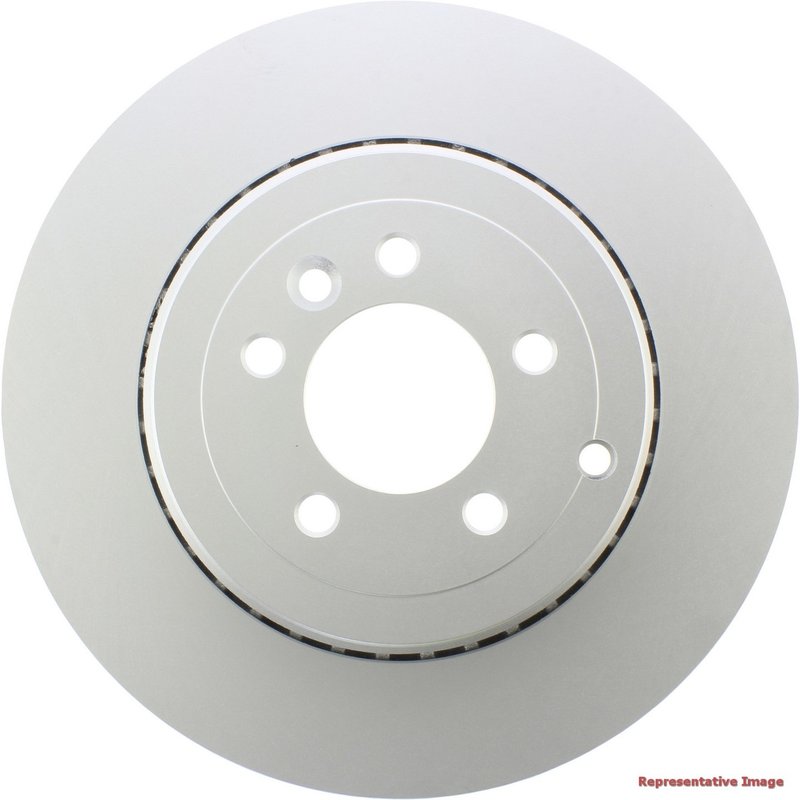

Centric 320.62071F Disc Brake Rotor - Rear

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
⚙️ 14 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$59.87Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
🚗Fitment: Cadillac, CTS, Seville, and STS
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.62071F Disc Brake Rotor - Rear
BrandCentric
Part Number320.62071F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
Discard Thickness0.945
Discard Thickness24.000
Nominal Thickness1.024
Nominal Thickness26.000
Disc FinishFully coated
Hat FinishCoated
Overall Height1.890
Overall Height48.000
Outside Diameter11.732
Outside Diameter298.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter190.000
Nominal Drum Diameter7.480
Bearings IncludedNo
Center Hole Diameter2.776
Center Hole Diameter70.500
Mounting Bolt Hole Circle Diameter114.300
Mounting Bolt Hole Circle Diameter4.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.504
Stud/Lug Hole Diameter12.800
Disc Mounting [cntrc]Floating / dih
Max PB Drum Dia [cntrc] in7.598
Max PB Drum Dia [cntrc] mm193.000
Misc Holes [cntrc]1
Vane Style [cntrc]Pillar
Weight [cntrc] kgs7.050
Weight [cntrc] lbs15.500

This part fits 14 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
2011CadillacSTSRear298mm Rear Disc; 5 Lug; Base Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2010CadillacSTSRear298mm Rear Disc; 5 Lug; Base Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009CadillacSTSRear298mm Rear Disc; 5 Lug; Base Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008CadillacSTSRear303mm Front Disc; 5 Lug; Standard Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007CadillacCTSBaseRearStandard Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007CadillacSTSRear303mm Front Disc; 5 Lug; Standard Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006CadillacCTSBaseRearStandard Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006CadillacSTSRear303mm Front Disc; 5 Lug; Standard Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005CadillacCTSBaseRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005CadillacSTSRear(JL9); 303mm Front Disc; Standard Brakes; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004CadillacCTSBaseRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004CadillacSevilleRearwith Vented Rotors; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003CadillacCTSRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003CadillacSevilleRearwith Vented Rotors; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
