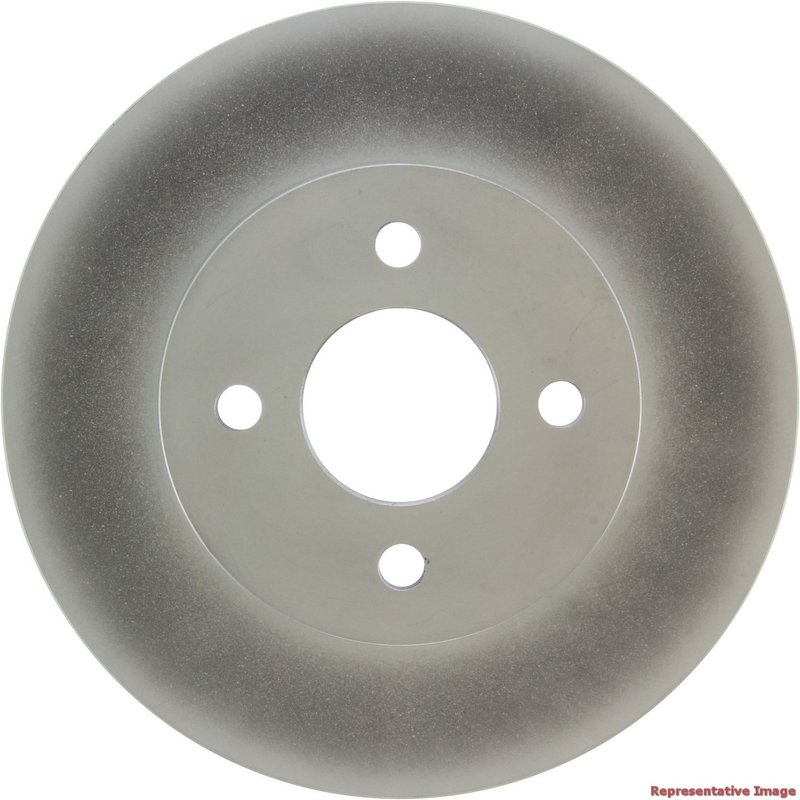

Centric 320.62072F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.62072F offers reliable braking performance for Chevrolet, Pontiac, and Saturn vehicles. Designed with a full coating, this rotor provides enhanced corrosion resistance and durability for models like the Chevrolet Cobalt, Pontiac G5, and Saturn Ion.

• Full coating on disc and hat for corrosion protection
• Vented rotor design for improved heat dissipation
• Floating disc mounting for consistent braking
• Compatible with Chevrolet Cobalt, Pontiac G4, G5, Ion, and Saturn Pursuit
• Nominal thickness of 0.945 inches (24.000 mm) with discard thickness at 0.866 inches (22.000 mm)
• Outside diameter of 10.079 inches (256.000 mm)
• Overall height of 1.858 inches (47.200 mm)
• Four stud/lug holes with 0.551 inch (14.000 mm) diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc surface and the hat. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The vented design and floating disc mounting contribute to effective heat management and reduced brake fade, making these rotors suitable for daily driving conditions on compatible Chevrolet, Pontiac, and Saturn models.

Technical Specifications and Features

This disc brake rotor features a smooth surface type and a vented vane style with straight vanes to optimize airflow and cooling. The rotor's nominal thickness is 0.945 inches (24.000 mm), with a discard thickness of 0.866 inches (22.000 mm), ensuring safe replacement intervals. The rotor weighs approximately 13.5 lbs (6.14 kgs), balancing durability and performance. The center hole diameter measures 2.362 inches (60.000 mm), and the mounting bolt hole circle diameter is 3.937 inches (100.000 mm), with four stud/lug holes sized at 0.551 inches (14.000 mm).

Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Cobalt, Pontiac G4, G5, Ion, and Saturn Pursuit
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Helps reduce brake fade through improved heat dissipation with vented design
• Prevents corrosion-related rotor damage with full coating
• Restores braking performance and pedal feel for safe vehicle operation

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Use proper torque specifications for lug nuts to avoid rotor warping
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details for part number 320.62072F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
