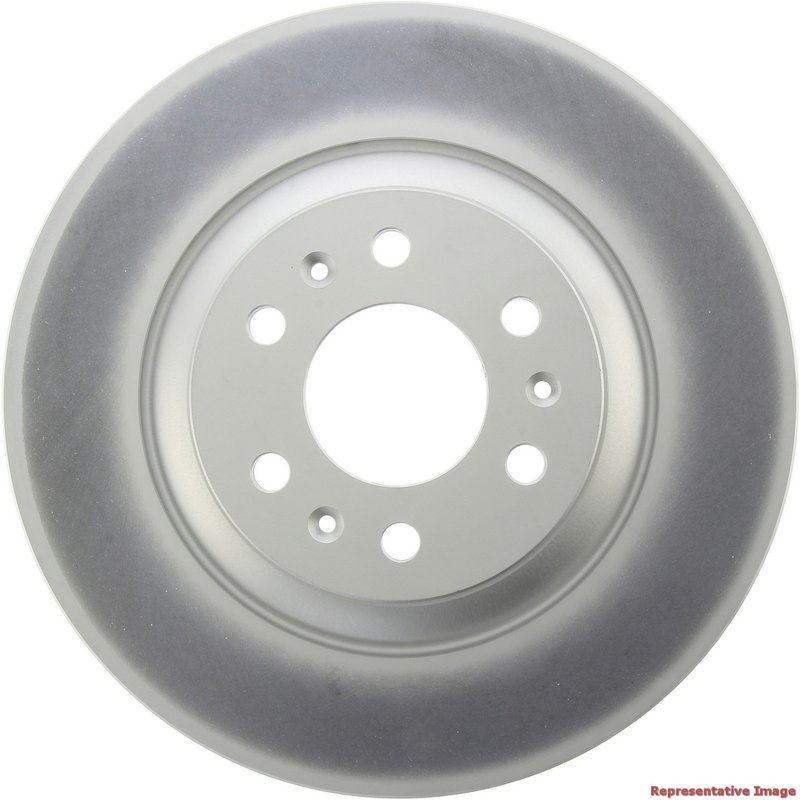

Centric 320.62082H Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Cadillac SRX

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.62082H) is engineered to provide consistent braking performance for Cadillac SRX models. Designed with a fully coated surface and high carbon content, this vented rotor offers durability and corrosion resistance for long-term use.

• Fully coated disc and hat finish for enhanced corrosion protection
• High carbon content for improved heat dissipation and reduced brake fade
• Vented design with pillar-style vanes to optimize cooling
• Floating disc mounting for better rotor alignment and performance
• Compatible with 6-lug wheel configurations on Cadillac SRX
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.209 inches (30.700 mm)
• Outside diameter of 12.717 inches (323.000 mm) and overall height of 2.047 inches (52.000 mm)

About the Centric GCX Elemental Protection Product Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content line focuses on delivering rotors with advanced corrosion resistance and thermal management. The full coating on both the disc and hat surfaces helps prevent rust and extends rotor life, while the high carbon content improves braking consistency under demanding conditions. This product line is designed to meet or exceed OEM specifications, making it suitable for vehicles like the Cadillac SRX that require reliable stopping power and durability.

Product Details and Specifications

This disc brake rotor features a smooth surface finish and a vented design with pillar-style vanes to enhance airflow and cooling during braking. The rotor’s floating disc mounting system allows for slight movement to reduce stress and improve brake pad contact. It has a center hole diameter of 2.787 inches (70.800 mm) and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm), accommodating six lug holes with a diameter of 0.563 inches (14.300 mm). Weighing approximately 22 lbs (10 kgs), this rotor balances strength and weight for optimal performance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac SRX models
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Helps reduce brake fade during extended or heavy braking
• Prevents rust and corrosion that can compromise braking efficiency
• Improves overall brake system reliability and safety

Installation Notes and Tips

• Ensure compatibility with Cadillac SRX wheel and brake system specifications before installation
• Check rotor thickness and discard limits to confirm suitability for reuse or replacement
• Use proper torque specifications on mounting bolts to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Follow manufacturer guidelines for bedding in new rotors and pads

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating process protects against corrosion, extending rotor life. While specific warranty details for part number 320.62082H should be confirmed with the supplier, Centric typically offers limited warranties covering defects in materials and workmanship.
