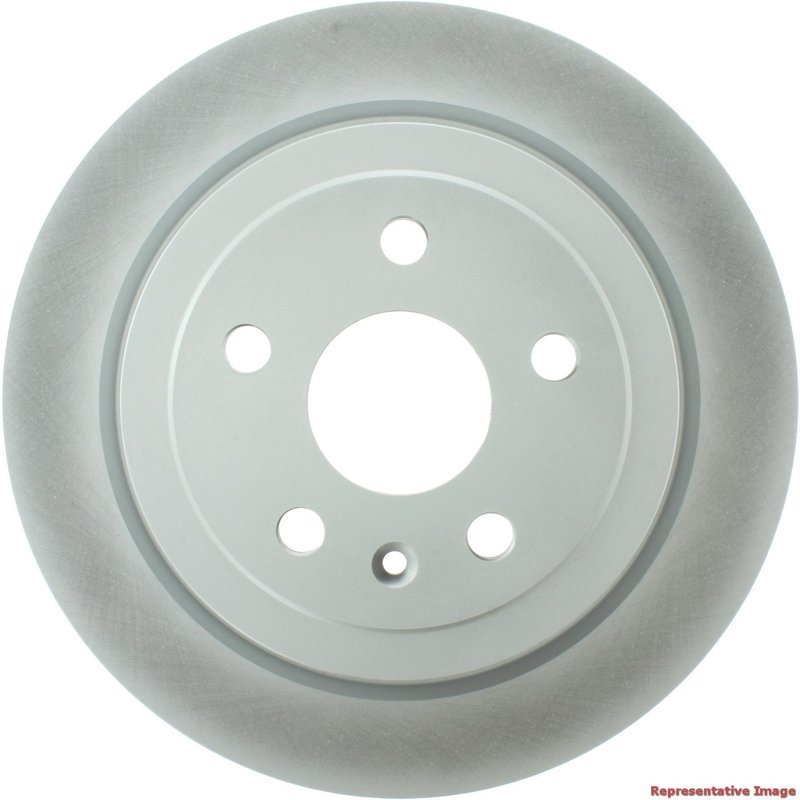

Centric 320.62105F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Cadillac and Chevrolet vehicles. Designed specifically for models like the Camaro and CTS, these rotors offer enhanced durability and corrosion resistance through a full coating finish.

• Part Number: 320.62105F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vanes for improved heat dissipation
• Nominal thickness of 0.906 inches (23.000 mm) with discard thickness at 0.827 inches (21.000 mm)
• Outside diameter of 12.402 inches (315.000 mm)
• Overall height of 1.890 inches (48.000 mm)
• 5 lug holes with a bolt circle diameter of 120.000 mm (4.724 inches)
• Center hole diameter of 67.400 mm (2.654 inches)
• Solid and vented rotor type optimized for performance and longevity

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating that guards against rust and corrosion. This full coating extends the rotor’s service life and maintains a clean appearance, which is especially beneficial for vehicles exposed to harsh weather conditions. The coated hat and disc surfaces reduce the risk of premature wear and help maintain consistent braking performance over time.

Technical Description and Specifications

This disc brake rotor features a vented design with straight vanes to facilitate efficient heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness is 0.906 inches (23.000 mm), with a discard thickness of 0.827 inches (21.000 mm), ensuring it meets safety standards for replacement. The smooth surface finish supports even pad contact and braking consistency. The rotor weighs approximately 17.3 lbs (7.86 kgs), balancing durability and weight for optimal vehicle handling.

Compatible Vehicles and Applications

• Compatible with Cadillac CTS models requiring a 12.402 inch (315 mm) rotor diameter
• Compatible with Chevrolet Camaro models with matching rotor specifications
• Designed for vehicles with 5 lug holes and a 120 mm bolt circle diameter
• Ideal for replacing worn or damaged rotors to restore braking efficiency
• Suitable for vehicles needing corrosion-resistant rotors for extended service life

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.827 inches) before installation
• Verify compatibility with vehicle make, model, and brake system specifications
• Clean mounting surfaces and check hub for damage prior to installation
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and safety. The full coating process provides additional protection against corrosion, extending the rotor’s lifespan. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
