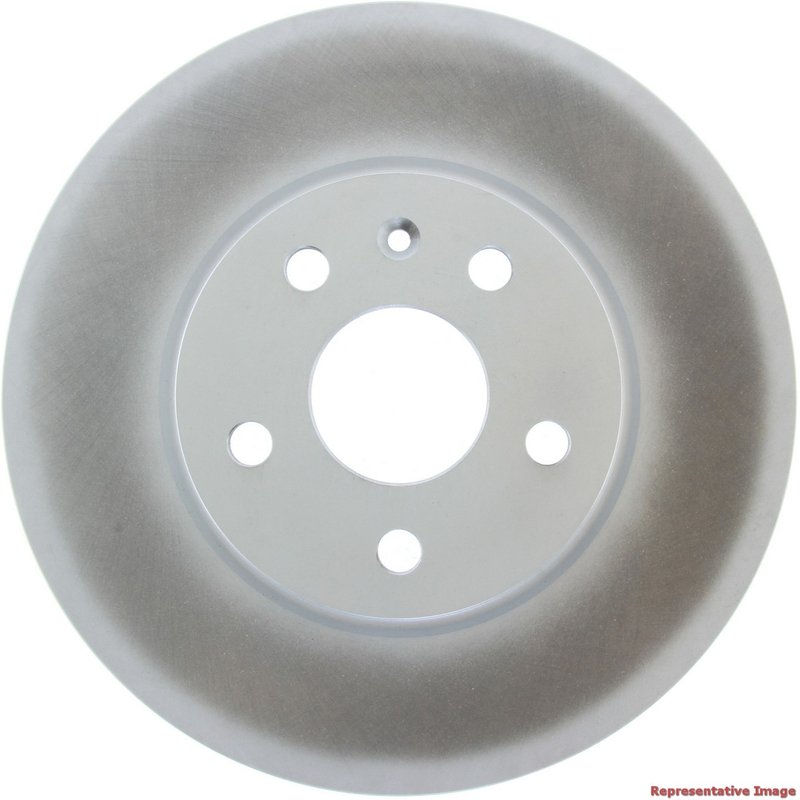

Centric 320.62106F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for CTS

The Centric 320.62106F is a fully coated front disc brake rotor for select 2008-2014 Cadillac CTS models with 315mm front disc and base brakes (JE5). It combines a vented, smooth-surface design with corrosion-resistant coating on the disc and hat for service in demanding road conditions.

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for drivers who want a direct-fit rotor with protective surface treatment and OE-style dimensions. For Cadillac CTS front brake service, part number 320.62106F provides the correct fitment details and rotor geometry for the listed application.

• Fits 2008-2014 Cadillac CTS, front
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for consistent brake pad contact
• Outside diameter: 12.441 in. / 316.000 mm
• Nominal thickness: 1.181 in. / 30.000 mm
• Discard thickness: 1.122 in. / 28.500 mm
• 5-lug pattern with 120.000 mm bolt circle
• Center hole diameter: 2.654 in. / 67.400 mm
• Floating disc mounting with 1 miscellaneous hole

This front brake rotor is sized for the Cadillac CTS front axle application listed above and is a practical choice when replacing a worn, scored, or corrosion-affected rotor. The Centric 320.62106F is engineered around the specified 315mm front disc setup, helping maintain proper rotor dimensions, wheel fitment, and brake system alignment on the 2008-2014 Cadillac CTS.

Common Reasons to Replace

• Brake pulsation from rotor thickness variation
• Visible scoring, rust, or uneven wear on the braking surface
• Reduced braking smoothness during everyday driving
• Corrosion on the hat or rotor surfaces
• Rotor wear approaching discard thickness

Installation Notes

Verify the vehicle uses base brakes (JE5) and a 315mm front disc before ordering. Confirm rotor dimensions, hub fit, and wheel clearance during installation, and inspect pads and caliper hardware for wear before reassembly. This part cross-references other applications by part number where listed in catalog data, but no interchange numbers are provided here.

Quality Assurance

Centric GCX Elemental Protection rotors use a full coating on the disc and a coated hat to help resist surface corrosion before and after installation. The vented construction, smooth finish, and OE-style dimensions support consistent brake service on the Cadillac CTS front axle.
