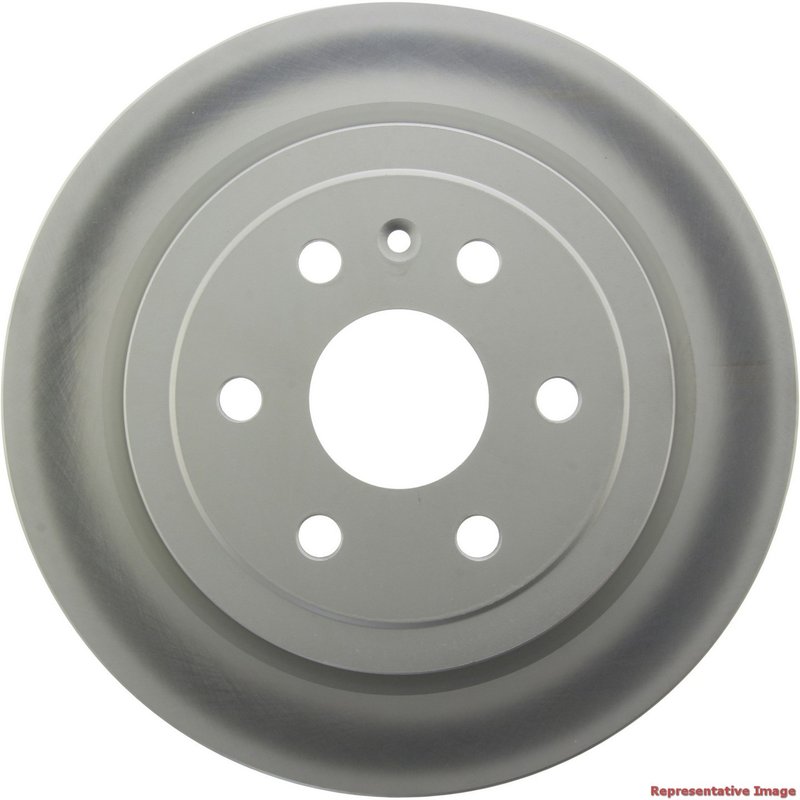

Centric 320.62123F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.62123F is engineered for reliable braking performance on Cadillac SRX and Saab 9-4X models. Featuring a fully coated finish, this vented rotor offers enhanced corrosion resistance and durability for long-term use.

• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 0.906 inches (23.000 mm) with discard thickness at 0.846 inches (21.500 mm)
• Outside diameter of 12.402 inches (315.000 mm) suitable for specified vehicle fitment
• 6 stud/lug holes with 0.630 inch (16.000 mm) diameter and 4.724 inch (120.000 mm) bolt circle diameter
• Center hole diameter of 2.654 inches (67.400 mm) for precise mounting
• Overall height of 1.890 inches (48.000 mm)
• Solid, smooth surface type without ABS tone ring included
• Weight approximately 17.15 lbs (7.78 kgs)

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This coating helps prevent rust and corrosion, extending the rotor's service life, especially in environments prone to moisture and road salt. The full coating also maintains the rotor's appearance and structural integrity over time, making it a practical choice for Cadillac SRX and Saab 9-4X owners seeking dependable replacement parts.

Product Details and Specifications

This Centric disc brake rotor is designed as a vented rotor with straight vanes, which facilitates efficient heat dissipation during braking. The nominal thickness of 0.906 inches (23.000 mm) ensures compatibility with the braking system specifications of the Cadillac SRX and Saab 9-4X. The discard thickness is set at 0.846 inches (21.500 mm), indicating the minimum safe thickness before replacement is necessary. The rotor features a smooth surface type, which is standard for many OEM replacement rotors, and does not include an ABS tone ring. The mounting configuration includes six lug holes with a 120 mm bolt circle diameter, matching the factory specifications for the listed vehicles.

Compatible Vehicles and Applications

• Cadillac SRX requiring replacement disc brake rotors
• Saab 9-4X brake system maintenance or repair
• Addressing rotor wear, corrosion, or damage on compatible models
• Upgrading to fully coated rotors for enhanced corrosion resistance
• Replacing vented rotors to maintain proper heat management during braking

Installation Notes and Tips

• Ensure rotor thickness is measured before installation to confirm discard limits
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for safety and performance
• Check compatibility with existing brake pads and calipers on Cadillac SRX and Saab 9-4X
• Inspect brake system components for wear during rotor replacement

Quality Assurance and Warranty

Centric rotors, including part number 320.62123F, are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process provides additional protection against corrosion, contributing to the rotor's longevity. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Users should consult product documentation or Centric directly for exact warranty terms.
