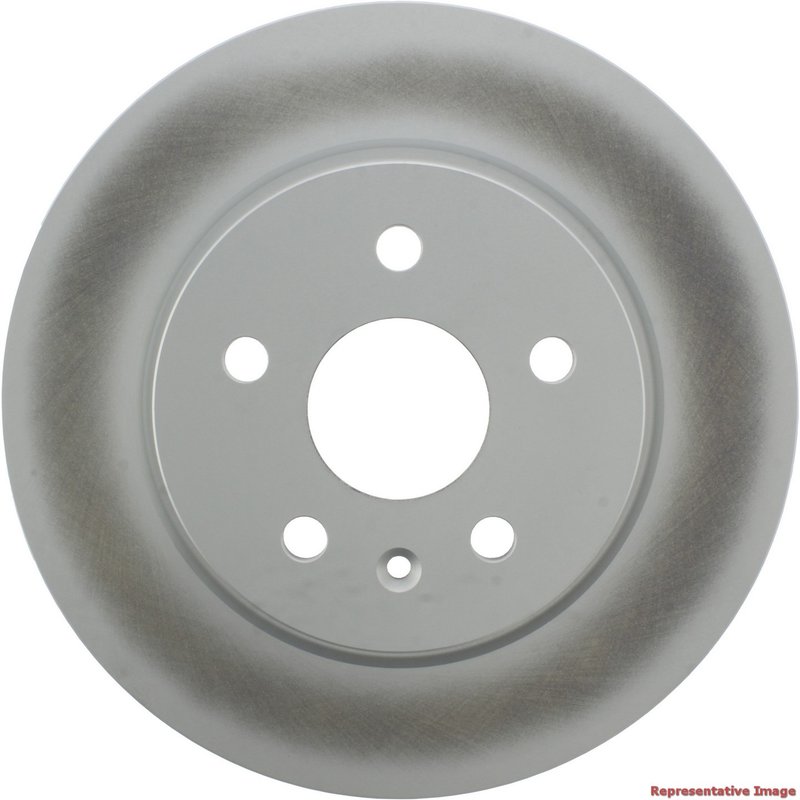

Centric 320.62127F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance with enhanced corrosion resistance. Designed for select Buick, Cadillac, Chevrolet, and Saab models, these rotors offer a fully coated finish to extend rotor life and maintain smooth operation.

• Part Number: 320.62127F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design for improved heat dissipation
• Nominal thickness of 0.906 inches (23.000 mm)
• Outside diameter of 12.402 inches (315.000 mm)
• Floating disc mounting for better rotor alignment
• Smooth surface type for consistent braking
• Compatible with 5 lug/stud holes, 0.642 inch (16.300 mm) diameter

Product Line Details: Centric GCX Elemental Protection

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor’s service life, especially in environments prone to moisture and road salt exposure. The rotors feature a vented design with straight vanes to optimize cooling and maintain braking efficiency under normal driving conditions.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 0.906 inches (23.000 mm) and a discard thickness of 0.846 inches (21.500 mm), ensuring a durable braking surface that meets OEM standards. The rotor’s outside diameter measures 12.402 inches (315.000 mm), suitable for specific Buick, Cadillac, Chevrolet, and Saab models including the Camaro, CT5, CT6, Impala, LaCrosse, Malibu, Regal, XTS, Allure, and 9-5. The rotor is vented with straight vanes to promote heat dissipation and reduce brake fade during extended use. The floating disc mounting design helps maintain proper alignment and reduces stress on the rotor and hub assembly.

Compatible Vehicles and Applications

• Buick Allure, LaCrosse, Regal
• Cadillac CT5, CT6, XTS
• Chevrolet Camaro, Impala, Malibu, Malibu Limited
• Saab 9-5

This rotor is designed to replace worn or damaged rotors on these models, restoring braking performance and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven rotor wear causing brake pulsation
• Overheating and brake fade during extended braking
• Warped rotors leading to vibration
• Reduced braking efficiency due to worn rotor surface

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.846 inches before installation. Clean the hub surface to prevent runout and ensure proper rotor seating. Use proper torque specifications for the 5 lug/stud bolts with a 0.642 inch diameter. Since this rotor does not include bearings or ABS tone rings, verify compatibility with your vehicle’s existing components. The floating disc mounting requires careful alignment during installation to maintain optimal rotor performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating provides additional protection against corrosion, extending rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult the product packaging or manufacturer for exact warranty terms.
