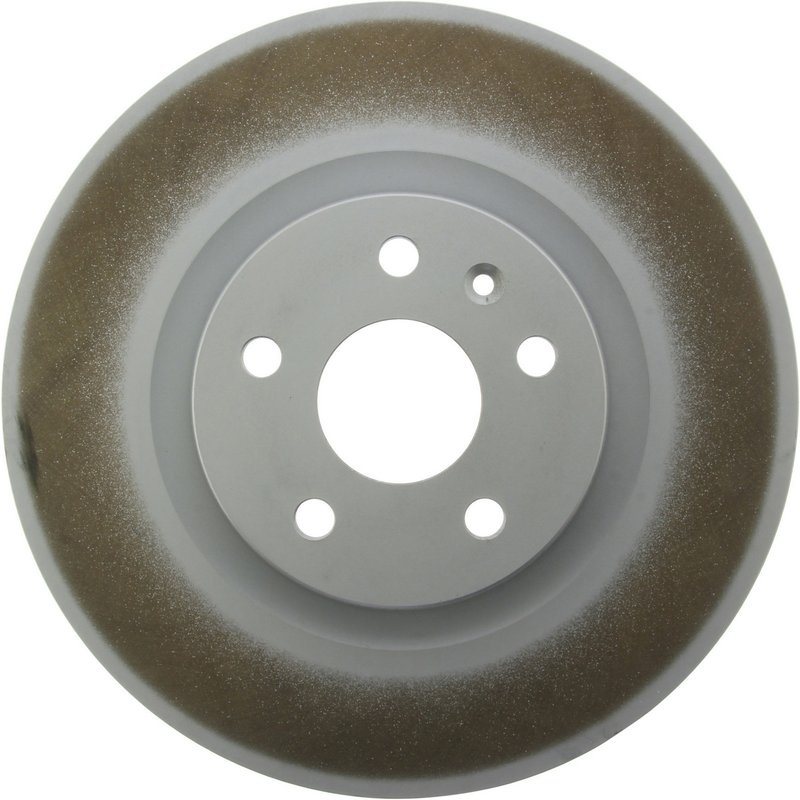

Centric 320.62140F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for select Buick, Cadillac, and Chevrolet vehicles. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-lasting use.

• Part Number: 320.62140F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness: 1.181 inches (30.000 mm)
• Discard thickness: 1.063 inches (27.000 mm)
• Outside diameter: 13.583 inches (345.000 mm)
• Overall height: 2.012 inches (51.100 mm)
• Floating disc mounting for better rotor alignment
• 5 lug/stud holes with 0.634 inch (16.100 mm) diameter
• Hat ID diameter: 6.236 inches (158.400 mm)
• Weight approximately 25.95 lbs (11.78 kgs)

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.62140F) are engineered to meet the specifications of various Buick, Cadillac, and Chevrolet models including the Caprice, Corvette, CTS, Regal, and XTS. These rotors feature a fully coated surface on both the disc and hat areas, which helps prevent rust and corrosion, extending the rotor's service life. The vented design with straight vanes enhances airflow to dissipate heat efficiently, reducing the risk of brake fade during demanding driving conditions.

With a nominal thickness of 1.181 inches and a discard thickness of 1.063 inches, these rotors maintain optimal braking performance throughout their lifespan. The floating disc mounting system allows for slight movement to reduce stress and improve rotor alignment, contributing to smoother braking. The rotor's dimensions, including a 13.583-inch outside diameter and 5 lug holes, ensure compatibility with the specified vehicle models.

Compatible Vehicles and Applications

• Designed for Buick Caprice and Regal models
• Compatible with Cadillac CTS and XTS vehicles
• Fits Chevrolet Corvette and select other models
• Ideal for replacing worn or damaged rotors on these vehicles
• Addresses issues such as rotor warping, excessive wear, and corrosion

Installation Notes and Tips

• Verify rotor dimensions and fitment with your vehicle before installation
• Ensure the rotor surface is clean and free of contaminants prior to mounting
• Use proper torque specifications for lug nuts to avoid rotor damage
• Check brake pads and hardware for wear during rotor replacement
• Perform a brake system test after installation to confirm proper operation

Quality Assurance and Warranty

Centric Parts manufactures the GCX Elemental Protection Disc Brake Rotors with strict quality control standards to ensure consistent performance and durability. The full coating process protects against corrosion, helping maintain rotor integrity over time. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or Centric directly for warranty terms related to part number 320.62140F.
