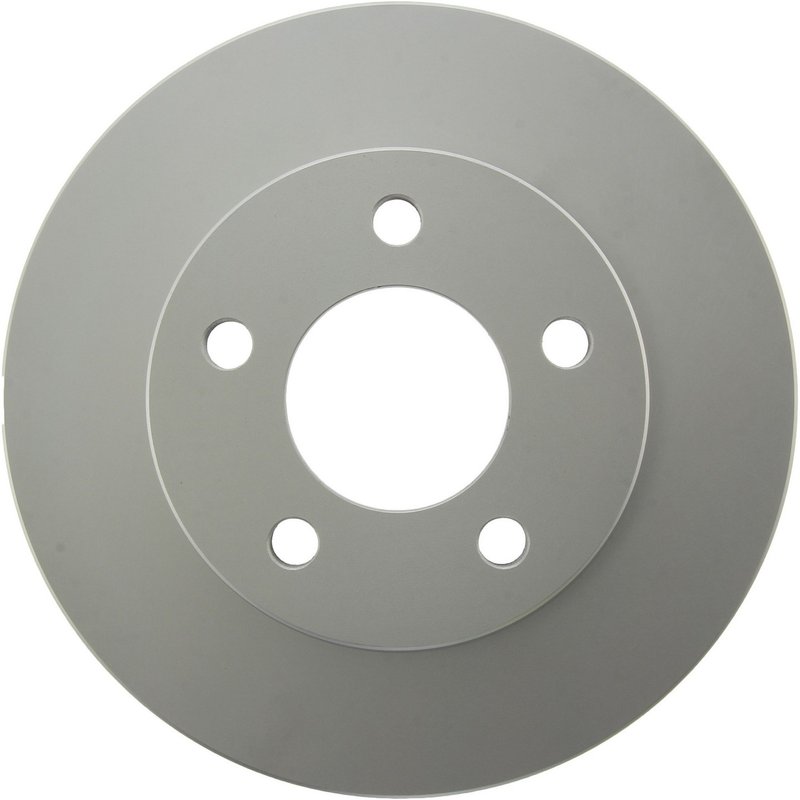

Centric 320.63003F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.63003F) are engineered for reliable braking performance on Jeep vehicles including Cherokee, Comanche, Wagoneer, and Wrangler models. These rotors feature a fully coated disc and hat finish to resist corrosion and extend service life.

• Fully coated disc and hat for enhanced rust protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 0.874 inches (22.2 mm) with discard thickness at 0.815 inches (20.7 mm)
• Outside diameter of 11.016 inches (279.8 mm) and overall height of 3.020 inches (76.7 mm)
• Floating disc mounting and smooth surface finish for consistent braking
• Designed for 5-lug wheel configurations with 4.5 inch (114.3 mm) bolt circle diameter

Detailed Product Description

This Centric GCX Elemental Protection Disc Brake Rotor is a vented rotor featuring a straight vane design that promotes efficient heat dissipation during braking, helping to reduce brake fade. The rotor’s fully coated disc and hat surfaces provide a protective barrier against corrosion, which is especially beneficial for Jeep Cherokee, Comanche, Wagoneer, and Wrangler vehicles often exposed to harsh environments. With a nominal thickness of 0.874 inches and a discard thickness of 0.815 inches, this rotor maintains structural integrity and performance throughout its service life. The floating disc mounting design allows for slight movement to accommodate thermal expansion, contributing to even pad wear and consistent braking feel.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with comprehensive corrosion resistance through full coating on both the disc and hat surfaces. This coating technology helps extend rotor life and maintain braking performance in environments prone to moisture and road salt exposure. The line is designed to meet or exceed OEM specifications, making it a suitable replacement option for Jeep models requiring durable and reliable braking components.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Corrosion damage on original rotors leading to uneven braking
• Brake fade due to insufficient heat dissipation in vented rotors
• Noise or vibration from uneven rotor surfaces
• Upgrading to rotors with enhanced corrosion protection for off-road use

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.815 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for Jeep Cherokee, Comanche, Wagoneer, or Wrangler
• Check compatibility with existing brake pads and calipers
• Bleed brake system after installation to maintain optimal brake performance

Quality Assurance and Warranty

Centric provides rotors manufactured to meet or exceed OEM standards, ensuring reliable fit and function for Jeep Cherokee, Comanche, Wagoneer, and Wrangler models. The part number 320.63003F undergoes rigorous quality control to maintain consistent thickness, balance, and coating application. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship.
