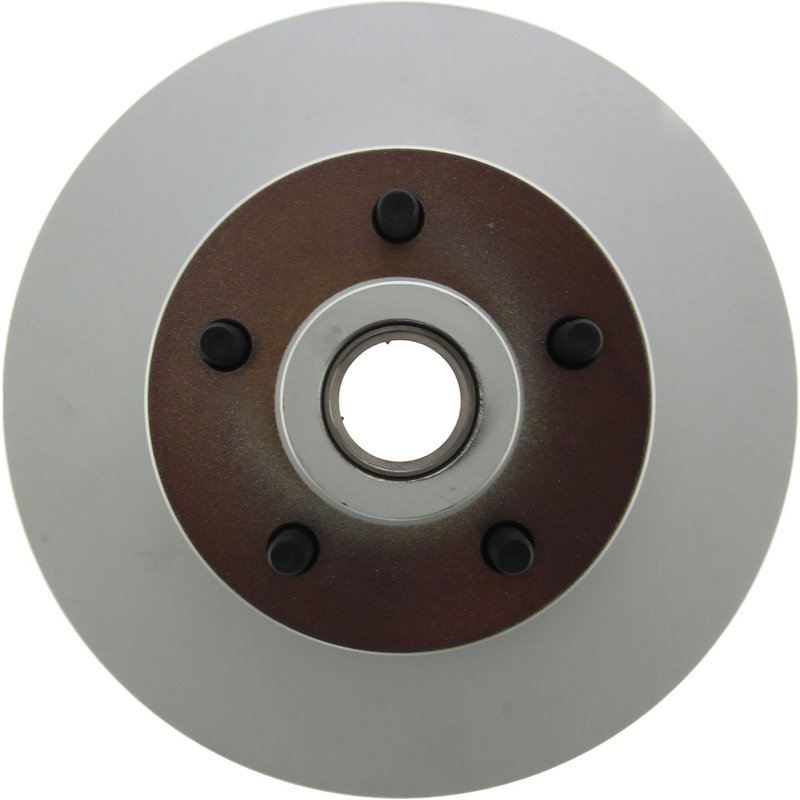

Centric 320.63010F Disc Brake Rotor - Front or Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Chrysler and Dodge vehicles. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for models like the Dodge Challenger and Chrysler Town & Country.

• Part Number: 320.63010F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.025 inches (26.040 mm) and discard thickness of 0.940 inches (23.880 mm)
• Outside diameter of 10.980 inches (278.900 mm) and overall height of 4.850 inches (123.200 mm)
• 5 stud/lug hole quantity with 0.500 inch stud thread diameter
• Smooth surface type for consistent braking performance

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection line focuses on providing disc brake rotors with a full coating that protects against rust and corrosion. This coating extends the rotor's service life and maintains a clean appearance, which is especially beneficial for vehicles exposed to harsh weather conditions. The full coating on both the disc and hat ensures comprehensive protection, making it suitable for Chrysler and Dodge models requiring reliable braking components.

Technical Specifications and Features

This vented disc brake rotor features a straight vane design that enhances airflow to reduce heat buildup during braking. The rotor's nominal thickness is 1.025 inches (26.040 mm), with a discard thickness of 0.940 inches (23.880 mm), ensuring safe replacement intervals. The rotor measures 10.980 inches (278.900 mm) in outside diameter and has an overall height of 4.850 inches (123.200 mm). It includes 5 lug holes with a 0.500 inch stud thread diameter and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm). The smooth surface finish supports consistent pad contact and braking efficiency.

Compatible Vehicles and Applications

• Chrysler Aspen
• Chrysler Fifth Avenue
• Chrysler Imperial
• Chrysler LeBaron
• Chrysler New Yorker
• Chrysler Town & Country
• Dodge Challenger
• Dodge Charger
• Dodge Dart
• Dodge Ram 1500 Van
• Dodge Valiant

This rotor is designed specifically for these Chrysler and Dodge models, ensuring proper fitment and performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven brake pad wear due to rotor surface damage
• Overheating and brake fade from insufficient heat dissipation
• Vibration or pulsation during braking caused by warped rotors
• Reduced braking efficiency from worn or undersized rotors

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor (part number 320.63010F), ensure the rotor is compatible with your vehicle’s specifications. Clean the hub surface before mounting to prevent runout. Torque lug nuts to manufacturer specifications and inspect brake pads for wear. Since this rotor does not include bearings or seals, reuse or replace those components as needed. Proper bedding-in of new rotors and pads is recommended for optimal braking performance.

Quality Assurance and Warranty

Centric provides quality-tested rotors manufactured to meet or exceed OEM standards. The full coating on the rotor and hat enhances corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
