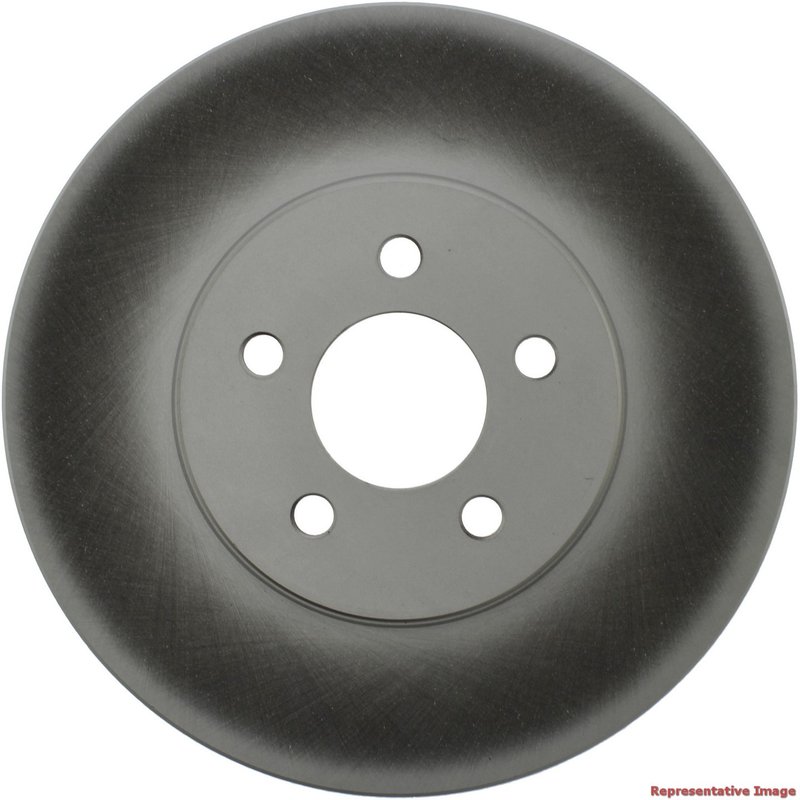

Centric 320.63042F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Breeze, Cirrus, Sebring, and Stratus, this rotor ensures consistent stopping power with enhanced corrosion resistance.

• Part Number: 320.63042F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with pillar-style vanes for improved heat dissipation
• Nominal thickness of 0.906 inches (23.000 mm) and discard thickness of 0.843 inches (21.400 mm)
• Outside diameter of 11.114 inches (282.300 mm)
• Floating disc mounting and smooth surface finish
• Five lug holes with a 100 mm (3.937 inch) bolt circle diameter
• Center hole diameter of 2.402 inches (61.000 mm)
• Weight approximately 14.5 lbs (6.59 kgs)

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are engineered to meet the specific braking requirements of Chrysler, Dodge, and Plymouth vehicles including the Breeze, Cirrus, Sebring, and Stratus models. Featuring a fully coated disc and hat finish, these rotors resist rust and corrosion, extending service life in various driving conditions. The vented rotor design with pillar-style vanes enhances airflow to reduce heat buildup, which helps maintain consistent braking performance and reduces the risk of brake fade.

With a nominal thickness of 0.906 inches and a discard thickness of 0.843 inches, these rotors provide a durable braking surface that meets OEM specifications. The smooth surface finish ensures even pad contact and quiet operation. The floating disc mounting system allows for slight rotor movement, which can improve brake pad wear and reduce noise. This rotor is designed with five lug holes on a 100 mm bolt circle diameter, making it compatible with the specified vehicle models.

Compatible Vehicles and Applications

• Chrysler Breeze
• Dodge Cirrus
• Plymouth Breeze
• Chrysler Sebring
• Dodge Stratus

This rotor is ideal for replacing worn or damaged disc brake rotors on these vehicles, restoring braking efficiency and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven brake pad wear due to rotor warping
• Reduced braking performance from heat-related fade
• Noise and vibration caused by rotor surface irregularities
• Excessive rotor thickness loss beyond discard limits

Installation Notes and Tips

• Ensure the rotor thickness is above the discard thickness of 0.843 inches before installation
• Clean the hub surface and mounting area to prevent rotor runout
• Use proper torque specifications on the five lug nuts with a 100 mm bolt circle diameter
• Check for proper alignment of the floating disc mounting system
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating on both the disc and hat provides enhanced corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always refer to the manufacturer’s warranty documentation for complete terms.
