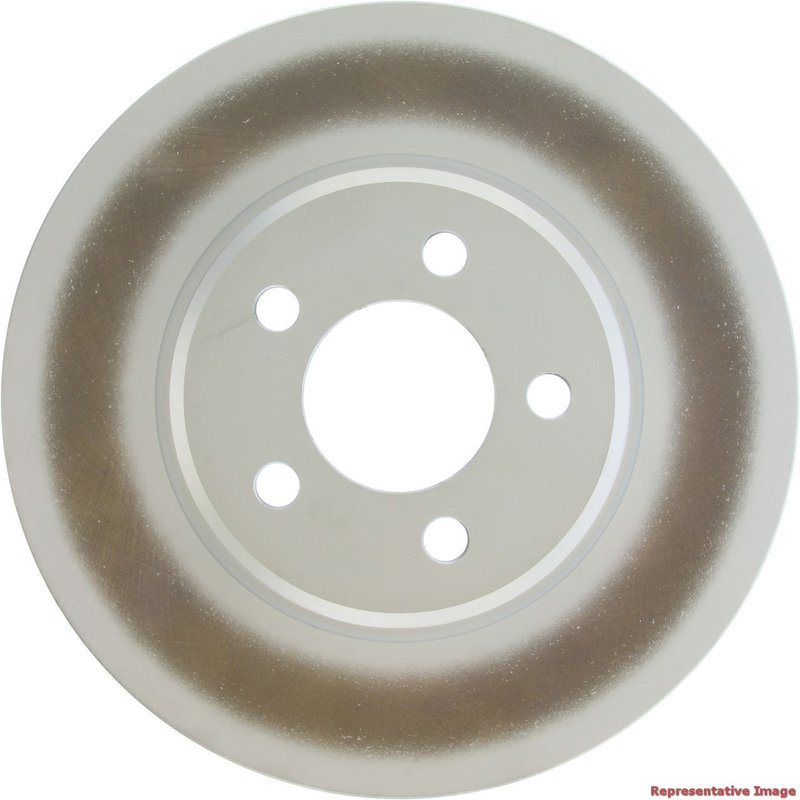

Centric 320.63059F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Chrysler and Dodge Vehicles

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.63059F) is engineered to provide consistent braking performance for select Chrysler and Dodge models. Designed with a fully coated finish, this vented rotor offers enhanced corrosion resistance and durability for vehicles like the Chrysler 300, Dodge Challenger, Charger, and Magnum.

• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.106 inches (28.1 mm) and discard thickness of 1.043 inches (26.5 mm)
• Outside diameter of 12.598 inches (320 mm) suitable for specified vehicle fitments
• Floating disc mounting and smooth surface type for reliable braking
• Five stud/lug holes with 0.657 inch (16.7 mm) diameter and 4.5 inch (114.3 mm) bolt circle diameter
• Overall height of 2.154 inches (54.7 mm) and center hole diameter of 2.854 inches (72.5 mm)
• Weight approximately 20.65 lbs (9.38 kgs)

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps reduce rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The rotors in this line are designed to meet or exceed OEM specifications, making them suitable replacements for Chrysler and Dodge vehicles requiring reliable braking components.

Product Details and Specifications

This disc brake rotor features a vented design with straight vanes to promote efficient heat dissipation during braking, reducing the risk of brake fade. The smooth surface finish ensures even pad contact and consistent stopping power. The rotor's floating disc mounting allows for slight movement to accommodate thermal expansion and improve overall brake system performance. With a nominal thickness of 1.106 inches and a discard thickness of 1.043 inches, this rotor meets the necessary safety standards for replacement. The five-lug hole pattern and precise bolt circle diameter ensure proper fitment on compatible Chrysler and Dodge models.

Compatible Vehicles and Applications

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

This rotor is designed specifically for these models, providing a direct replacement that maintains factory specifications and braking performance.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven brake pad wear due to rotor surface imperfections
• Brake fade caused by insufficient heat dissipation
• Vibration or pulsation during braking from warped rotors
• Reduced braking efficiency from worn or undersized rotors

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor (320.63059F), ensure the rotor thickness is above the discard thickness of 1.043 inches. Clean the hub surface before mounting to prevent runout. Use proper torque specifications for the five lug nuts with a 4.5 inch bolt circle diameter. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s existing components. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
