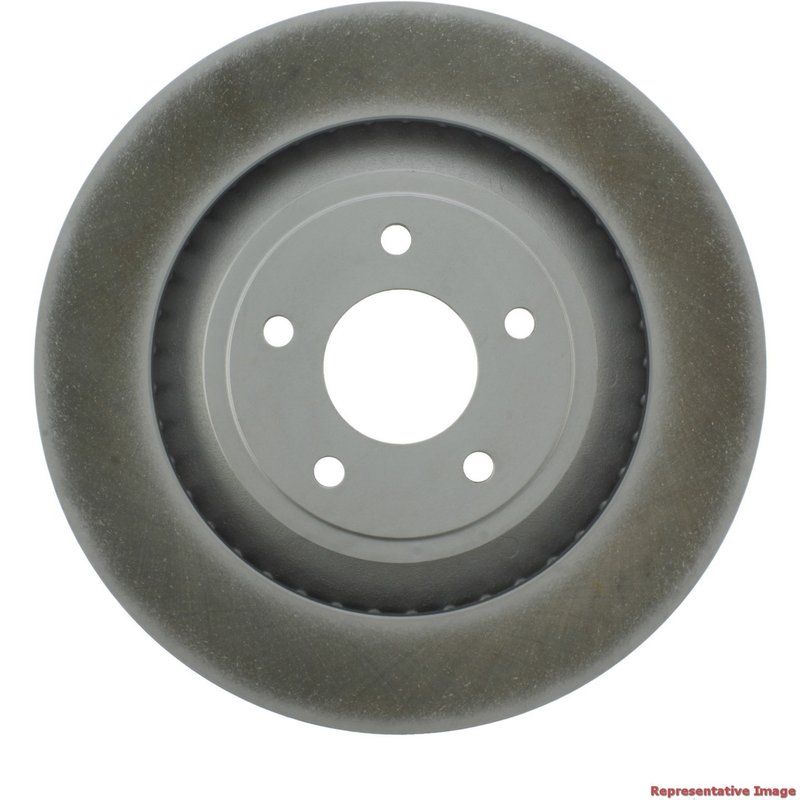

Centric 320.63072F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Chrysler and Dodge vehicles, including the 200, Avenger, and Caliber models. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability.

• Part Number: 320.63072F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) and discard thickness of 1.043 inches (26.500 mm)
• Outside diameter of 13.386 inches (340.000 mm)
• Overall height of 1.724 inches (43.800 mm)
• Floating disc mounting for better rotor alignment
• 5 lug holes with a bolt circle diameter of 4.500 inches (114.300 mm)
• Smooth surface finish for consistent pad contact

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are engineered to meet or exceed OEM specifications for Chrysler 200, Dodge Avenger, and Dodge Caliber vehicles. Featuring a fully coated disc and hat finish, these rotors resist rust and corrosion, extending service life in various driving conditions. The vented rotor design with straight vanes enhances airflow, helping to dissipate heat effectively during braking. This reduces the risk of brake fade and maintains consistent stopping power. The floating disc mounting system allows for slight rotor movement, which helps prevent warping and uneven wear. With a smooth surface finish, these rotors ensure optimal brake pad contact and quiet operation.

Centric GCX Elemental Protection Product Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating to combat corrosion and wear. This product line is designed for drivers seeking rotors that maintain structural integrity and appearance over time, especially in environments prone to moisture and road salt exposure. The full coating on both the disc and hat surfaces distinguishes this line by offering enhanced protection compared to standard rotors with partial or no coating.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chrysler 200, Dodge Avenger, and Dodge Caliber
• Addresses rotor corrosion and rust buildup that can affect braking performance
• Helps reduce brake noise caused by uneven rotor surfaces
• Improves heat dissipation to minimize brake fade during extended use
• Prevents premature rotor wear in harsh weather conditions

Installation Notes and Tips

• Ensure rotor discard thickness of 1.043 inches (26.500 mm) is not exceeded before replacement
• Verify compatibility with vehicle lug pattern: 5 lug holes, 4.500 inch bolt circle diameter
• Clean hub surface before installation to ensure proper rotor seating
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Centric Parts manufactures the GCX Elemental Protection Disc Brake Rotors to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. It is recommended to consult the product packaging or Centric’s official documentation for exact warranty terms related to part number 320.63072F.
