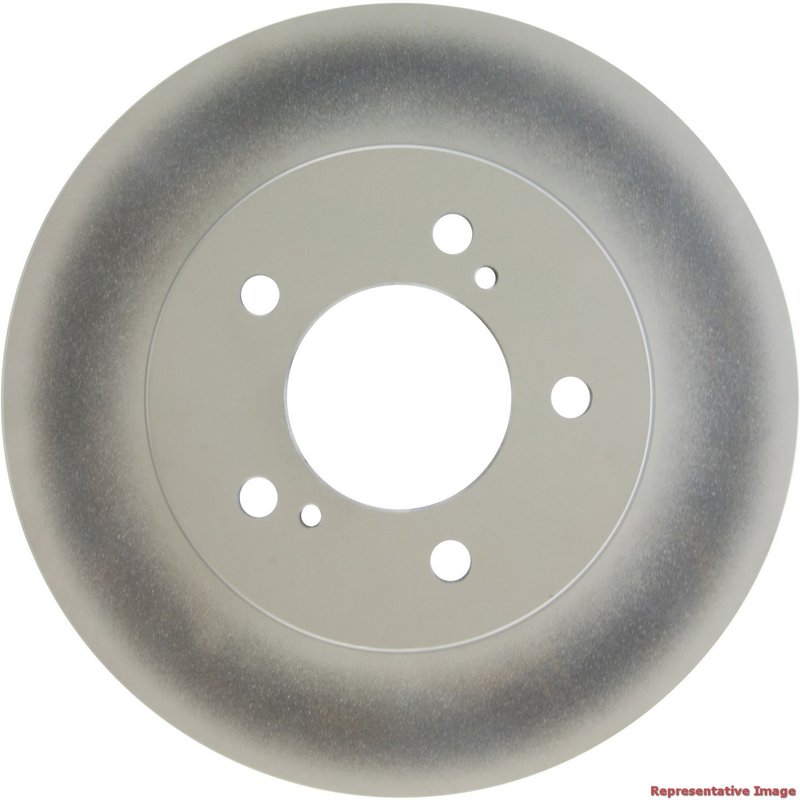

Centric 320.65032F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Quest and Villager

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65032F, is a front vented rotor built for 1993-2002 Mercury Villager and 1993-2002 Nissan Quest applications. Its fully coated disc finish and coated hat help protect exposed metal surfaces, while the smooth braking surface supports consistent pad contact.

Key Features

• Fits 1993-2002 Mercury Villager, front
• Fits 1993-2002 Nissan Quest, front
• Part number 320.65032F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for even pad engagement
• 5-lug pattern with 114.3 mm bolt circle
• Floating disc mounting and 2 miscellaneous holes
• Outside diameter: 276.6 mm; overall height: 52.3 mm
• Nominal thickness: 26.0 mm; discard thickness: 24.0 mm

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for drivers replacing a front brake rotor on a Mercury Villager or Nissan Quest. The vented construction helps manage heat during braking, while the coated finish on the disc and hat adds protection to the rotor surfaces. With a 74.0 mm center hole diameter, 12.8 mm lug holes, and a 114.3 mm bolt circle, this rotor matches the listed front fitment for these vehicles. The Centric 320.65032F is a direct-fit brake rotor choice for 1993-2002 Nissan Quest front brake service and 1993-2002 Mercury Villager front brake replacement.

What This Rotor Helps Address

• Front brake pulsation caused by worn rotor surfaces
• Brake noise related to uneven rotor wear
• Reduced braking consistency from heat buildup
• Surface corrosion on exposed rotor areas
• Rotor replacement needs during front brake service

Installation Notes and Tips

Verify rotor dimensions, hub fit, and brake pad condition before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect caliper hardware, pads, and wheel bearings during service. This rotor uses a vented, straight-vane design and is listed for front position only. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric GCX rotors are engineered with coated surfaces and application-specific dimensions to support consistent fitment on the listed Mercury Villager and Nissan Quest front brake applications. Part number 320.65032F is specified for the years and positions shown in the fitment data.
