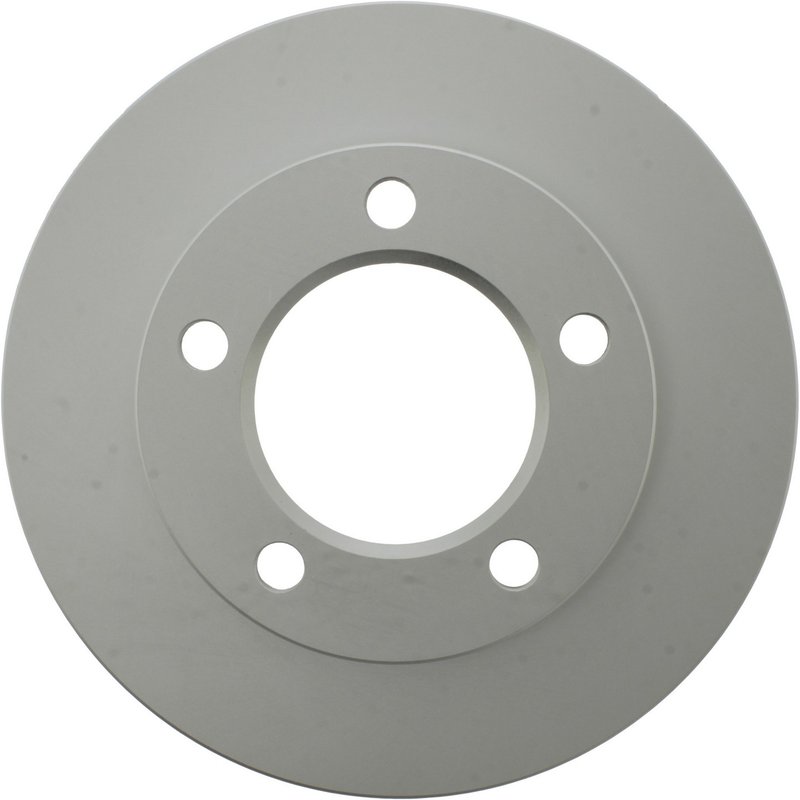

Centric 320.65041F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.65041F offers reliable braking performance for Ford Bronco and F-150 models. Designed with a full coating to resist corrosion, this vented rotor ensures durability and consistent stopping power under various driving conditions.

• Full coating on disc and hat for enhanced corrosion resistance
• Vented rotor design for improved heat dissipation
• Compatible with Ford Bronco and Ford F-150 vehicles
• 5 mounting bolt holes with precise fitment specifications
• Solid smooth surface finish for consistent brake pad contact
• Nominal thickness of 1.024 inches (26.000 mm) with discard thickness at 0.961 inches (24.400 mm)
• Overall height of 2.559 inches (65.000 mm) and outside diameter of 11.713 inches (297.500 mm)
• Straight vane style for effective airflow and cooling

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is engineered to provide long-lasting protection against rust and corrosion, which is critical for maintaining braking efficiency over time. This rotor features a fully coated disc and hat finish, which helps extend the rotor's service life, especially in harsh weather conditions. The vented design with straight vanes promotes optimal heat dissipation, reducing the risk of brake fade during heavy braking. With a smooth surface type, the rotor ensures even pad wear and consistent braking performance. The rotor mounts behind the hub and includes five mounting bolt holes, matching the factory specifications for Ford Bronco and F-150 models. The precise dimensions, including a center hole diameter of 3.878 inches (98.500 mm) and mounting bolt hole circle diameter of 5.500 inches (139.700 mm), ensure a proper fit and easy installation.

Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded rotors to prevent premature brake failure
• Addressing uneven brake pad wear due to rotor surface imperfections
• Improving heat management in braking systems to reduce fade
• Ensuring proper fitment for Ford Bronco and F-150 brake systems

Installation Notes and Tips

• Verify rotor thickness before installation; discard thickness is 0.961 inches (24.400 mm)
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Use proper torque specifications on the 5 mounting bolts to avoid rotor warping
• Check compatibility with vehicle ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads for wear and replace if necessary during rotor installation

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process provides enhanced corrosion resistance, contributing to the rotor's longevity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
