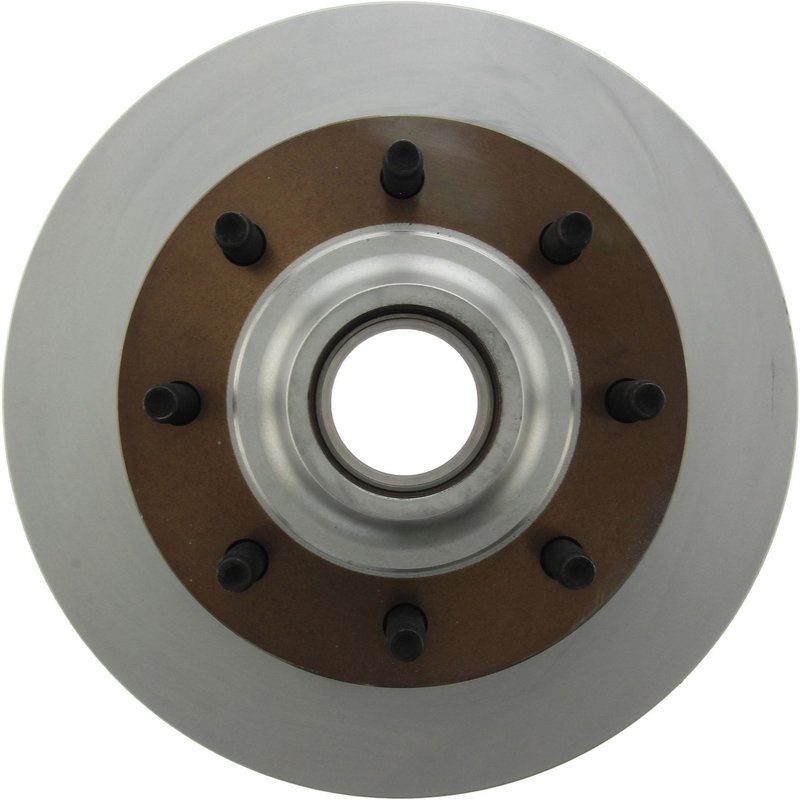

Centric 320.65046F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Ford E-Series and F-Series trucks and vans. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for demanding driving conditions.

• Part Number: 320.65046F
• Fully coated disc and hat for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Includes ABS tone ring for compatibility with ABS systems
• Compatible with multiple Ford E-Series and F-Series models
• Nominal thickness: 1.181 inches (30.000 mm)
• Discard thickness: 1.102 inches (28.000 mm)
• Outside diameter: 13.031 inches (331.000 mm)
• Stud thread diameter: 0.563 inches
• Eight stud/lug hole quantity

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.65046F) are engineered to meet or exceed OEM specifications for Ford E-150, E-250, E-350, and F-250, F-350 models. These rotors feature a vented design with straight vanes that promote efficient heat dissipation, reducing the risk of brake fade during heavy use. The fully coated disc and hat surfaces provide a protective barrier against rust and corrosion, extending rotor life and maintaining consistent braking performance.

With an outside diameter of 13.031 inches and a nominal thickness of 1.181 inches, these rotors maintain structural integrity under demanding conditions. The inclusion of an ABS tone ring ensures seamless integration with factory ABS systems, preserving vehicle safety features. The rotor mounts to the hub and rotor assembly with eight lug holes and a stud thread diameter of 0.563 inches, matching factory fitment requirements.

Compatible Vehicles and Applications

• Ford E-150 and E-150 Econoline
• Ford E-250 and E-250 Econoline
• Ford E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, and E-350 Super Duty
• Ford Econoline series
• Ford F-250 and F-350 trucks

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Brake fade due to overheating
• Uneven rotor wear causing vibration or noise
• Compatibility issues with ABS systems
• Reduced braking efficiency from worn or damaged rotors

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.102 inches) before installation
• Clean hub mounting surface to prevent rotor runout
• Torque lug nuts to manufacturer specifications for proper fitment
• Verify ABS tone ring alignment for proper sensor operation
• Inspect brake pads and replace if worn to ensure optimal braking performance

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The full coating process protects against corrosion, extending the service life of the rotor. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric's official warranty documentation for complete terms.
