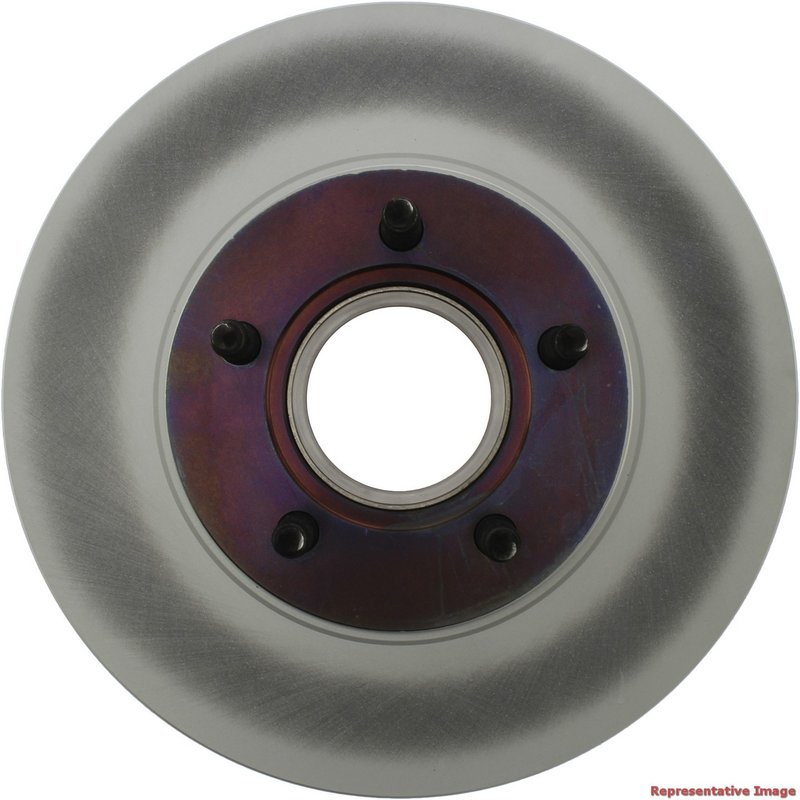

Centric 320.65050F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford and Mazda Trucks

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.65050F) is engineered for dependable braking performance on Ford Ranger and Mazda B-Series trucks. Designed to meet OEM specifications, this rotor offers a fully coated finish to resist corrosion and extend service life.

• Fully coated disc and hat finish for enhanced rust protection
• Vented rotor design with straight vanes for improved heat dissipation
• Includes ABS tone ring for compatibility with ABS systems
• Nominal thickness of 1.024 inches (26.000 mm) with discard thickness at 0.965 inches (24.500 mm)
• Overall diameter of 11.264 inches (286.100 mm) and height of 2.272 inches (57.700 mm)
• Five stud/lug hole configuration with 0.500 inch stud thread diameter

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

This product is part of the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line, which focuses on providing rotors with a complete protective coating. This coating helps prevent rust and corrosion on both the braking surface and the rotor hat, ensuring longer rotor life and consistent braking performance, especially in harsh environments.

Product Details and Specifications

The 320.65050F rotor features a vented design with straight vanes to promote efficient heat dissipation during braking, reducing the risk of brake fade. The smooth surface finish ensures optimal contact with brake pads. The rotor includes an ABS tone ring, making it compatible with vehicles equipped with ABS systems. With a mounting bolt hole circle diameter of 114.3 mm (4.500 inches) and five lug holes, this rotor fits select Ford and Mazda trucks including the B2300, B3000, B4000, F-100 Ranger, and Ranger models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded rotors to prevent rust-related braking issues
• Restoring braking performance on Ford Ranger and Mazda B-Series trucks
• Ensuring ABS system functionality with included tone ring
• Addressing rotor thickness below discard limits for safety

Installation Notes and Tips

• Verify rotor thickness before installation; discard thickness is 0.965 inches (24.500 mm)
• Ensure proper torque on lug nuts to manufacturer specifications
• Clean rotor surface before mounting to remove any protective coating residue
• Check compatibility with vehicle ABS system due to included tone ring
• Inspect related components such as bearings and seals during installation

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process provides added corrosion resistance to extend rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
